FF107R77DT80K4Detailed Information
Keyword: what parallel axle reduction machine is 75kw _ ff107r77dt80k4_ff107r77dre63ms4
FF107R77DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DT80K4 | 2369 | 0.55KW | 0.58r/min | 8120N.m | 453kg | 48600N | 0.95 |
| FF107R77DT80K4 | 2068 | 0.55KW | 0.67r/min | 7090N.m | 453kg | 51400N | 1.10 |
| FF107R77DT80K4 | 1826 | 0.55KW | 0.76r/min | 6090N.m | 453kg | 53800N | 1.25 |
| FF107R77DT80K4 | 1597 | 0.55KW | 0.86r/min | 5450N.m | 453kg | 55300N | 1.40 |
| FF107R77DT80K4 | 1401 | 0.55KW | 0.98r/min | 4750N.m | 453kg | 56900N | 1.60 |
| FF107R77DT80K4 | 1243 | 0.55KW | 1.10r/min | 4140N.m | 453kg | 58100N | 1.85 |
| FF107R77DT80K4 | 1087 | 0.55KW | 1.30r/min | 3710N.m | 453kg | 59000N | 2.10 |
| FF107R77DT80K4 | 950 | 0.55KW | 1.40r/min | 3170N.m | 453kg | 60100N | 2.40 |
| FF107R77DT80K4 | 834 | 0.55KW | 1.70r/min | 2750N.m | 453kg | 60800N | 2.80 |
| FF107R77DT80K4 | 640 | 0.55KW | 2.20r/min | 2140N.m | 453kg | 61900N | 3.60 |
Ff107r77dre63ms4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRE63MS4 | 14767 | 0.12KW | 0.10r/min | 8850N.m | 443.5kg | 65000N | 0.90 |
| FF107R77DRE63MS4 | 11348 | 0.12KW | 0.11r/min | 7550N.m | 443.5kg | 65000N | 1.05 |
| FF107R77DRE63MS4 | 10039 | 0.12KW | 0.13r/min | 6600N.m | 443.5kg | 65000N | 1.20 |
| FF107R77DRE63MS4 | 8548 | 0.12KW | 0.14r/min | 5890N.m | 443.5kg | 65000N | 1.35 |
| FF107R77DRE63MS4 | 7674 | 0.12KW | 0.17r/min | 5150N.m | 443.5kg | 65000N | 1.55 |
| FF107R77DRE63MS4 | 6767 | 0.12KW | 0.19r/min | 4490N.m | 443.5kg | 65000N | 1.80 |
| FF107R77DRE63MS4 | 5954 | 0.12KW | 0.22r/min | 3700N.m | 443.5kg | 65000N | 2.20 |
| FF107R77DRE63MS4 | 5223 | 0.12KW | 0.24r/min | 3210N.m | 443.5kg | 65000N | 2.50 |
| FF107R77DRE63MS4 | 4567 | 0.12KW | 0.27r/min | 2910N.m | 443.5kg | 65000N | 2.70 |
| FF107R77DRE63MS4 | 3521 | 0.12KW | 0.32r/min | 2670N.m | 443.5kg | 65000N | 3.00 |
Ff107r77dt80k4 deviation motorType:
F107r77dt80k4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dt80k bottom foot hollow axis installed parallel axle-slash gear brake
Fv107br77dt80k4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dt80k4 sky axis installation parallel axle-slash gear reduction machine
Fv107r77dt80k4 sky axis installation of parallel axes - tilt gear deviators
Faf107r77dt80k4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf107r77dt80k4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz107r77dt80k4 is a parallel axle for b14 flannels - a slasher
Fvz107r77dt80k4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff107r77dt80k4 is a parallel to the b5-slash gear reduction machine
Fh107br77dt80k bottom foot axle lock, parallel axle-slasher
Fh107r77dt80k4 is a parallel axle for an empty axle lock
Fhf107r77dt80k4 is a parallel axle of b5-carriage locker-slasher-slasher
Fhz107r77dt80k4 is a parallel axle for the b14 axle lock, a slasher

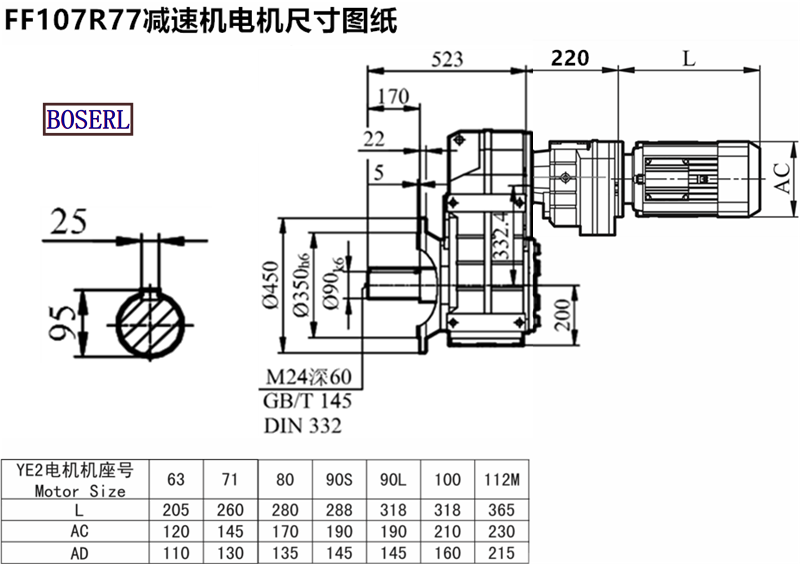

Ff107r77dt80k4 deviation motorInstall size drawings
Ff107r77dt80k4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
