FF107R77DV100LS4Detailed Information
Keyword: what kind of parallel axle gear-reducing power unit for 3kw _ ff107r77dv100ls4_ff107r77drn71d4
FF107R77DV100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DV100LS4 | 560 | 2.2KW | 2.50r/min | 7590N.m | 470kg | 50000N | 1.00 |
| FF107R77DV100LS4 | 489 | 2.2KW | 2.90r/min | 6620N.m | 470kg | 52500N | 1.15 |
| FF107R77DV100LS4 | 640 | 2.2KW | 2.20r/min | 8730N.m | 470kg | 46900N | 0.90 |
| FF107R77DV100LS4 | 436 | 2.2KW | 3.30r/min | 5950N.m | 470kg | 54100N | 1.30 |
| FF107R77DV100LS4 | 370 | 2.2KW | 3.80r/min | 5040N.m | 470kg | 56200N | 1.50 |
| FF107R77DV100LS4 | 333 | 2.2KW | 4.30r/min | 4540N.m | 470kg | 57300N | 1.70 |
Ff107r77drn71d4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRN71D4 | 3037 | 0.37KW | 0.45r/min | 6850N.m | 448.5kg | 52000N | 1.10 |
| FF107R77DRN71D4 | 2756 | 0.37KW | 0.50r/min | 6210N.m | 448.5kg | 53500N | 1.25 |
| FF107R77DRN71D4 | 2369 | 0.37KW | 0.58r/min | 5340N.m | 448.5kg | 55500N | 1.45 |
| FF107R77DRN71D4 | 2068 | 0.37KW | 0.67r/min | 4660N.m | 448.5kg | 57000N | 1.65 |
| FF107R77DRN71D4 | 1597 | 0.37KW | 0.86r/min | 3570N.m | 448.5kg | 59300N | 2.20 |
Ff107r77dv100ls4 deviation motorType:
F107r77dv100ls4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dv100ls4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv107br77dv100ls4 bottom feathers sky axes installation of parallel axes - tilt gear deviators
Fa107r77dv100ls4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dv100ls4 cave axes installation of parallel axes - tilt-truck detachors
Faf107r77dv100ls4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf107r77dv100ls4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis
Faz107r77dv100ls4 is a parallel axle for b14 flange-slash gears
Fvz107r77dv100ls4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff107r77dv100ls4 is a parallel to the b5 installation of a parallel axle - a slasher
Fh107 br77dv100ls 4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh107r77dv100ls4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dv100ls4 is a parallel axle for the b5 axle lock-drive
Fhz107r77dv100ls4 is a parallel axle-slasher for the b14 axle lock

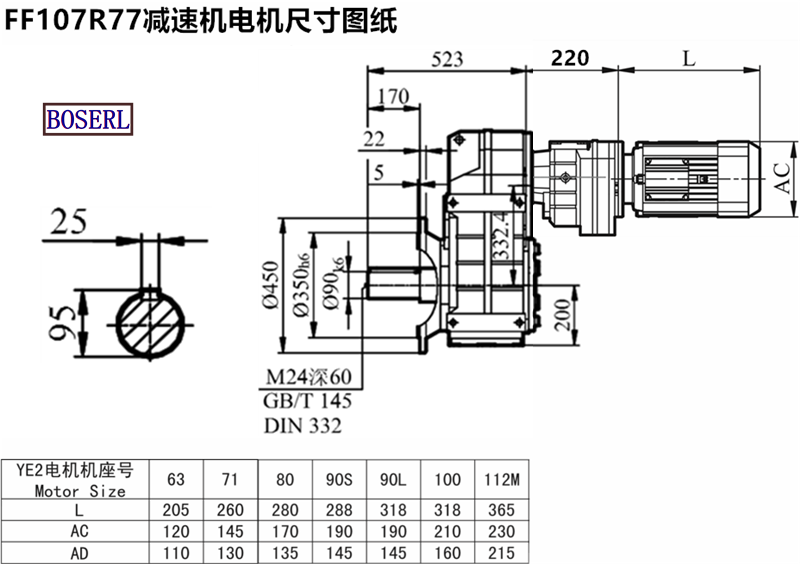

Ff107r77dv100ls4 deviation motorInstall size drawings
Ff107r77dv100ls4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What parallel axle gear speed reduction power ff107r77dv100ls4ff107r77drn71d4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF107R77DV100LS4减速机样本 |
|
| FF107R77DV100LS4减速机三维图纸 |
|
