FF107R77DVE112M4Detailed Information
Keyword: what parallel axle reduction power is used by 160kw_ff107r77dve112m4_ff107r77dr90m4
FF107R77DVE112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DVE112M4 | 333 | 4KW | 4.40r/min | 8120N.m | 484kg | 48600N | 0.95 |
| FF107R77DVE112M4 | 291 | 4KW | 5.00r/min | 7090N.m | 484kg | 51300N | 1.10 |
| FF107R77DVE112M4 | 255 | 4KW | 5.70r/min | 6210N.m | 484kg | 53500N | 1.25 |
Ff107r77dr90m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DR90M4 | 1243 | 1.1KW | 1.10r/min | 8350N.m | 458kg | 48000N | 0.90 |
| FF107R77DR90M4 | 1087 | 1.1KW | 1.30r/min | 7380N.m | 458kg | 50600N | 1.05 |
| FF107R77DR90M4 | 950 | 1.1KW | 1.50r/min | 6380N.m | 458kg | 53100N | 1.20 |
| FF107R77DR90M4 | 834 | 1.1KW | 1.70r/min | 5570N.m | 458kg | 55000N | 1.40 |
| FF107R77DR90M4 | 736 | 1.1KW | 1.90r/min | 4890N.m | 458kg | 56500N | 1.55 |
| FF107R77DR90M4 | 6405 | 1.1KW | 2.20r/min | 4310N.m | 458kg | 7800N | 1.80 |
Ff107r77dve112m4 deviation motorType:
F107r77dve112m4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dve112m4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv107br77dve112m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dve112m4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dve112m4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf107r77dve112m4 is a parallel axle for b5 aerocentric axle-slasher
Fvf107r77dve112m4 is the parallel axle-slash gear-reducing machine for b5-franco-air
Faz107r77dve112m4 is a parallel to the b14fanan installation of a side axle-slasher
Fvz107r77dve112m4 is a parallel axle for b14 flannel axle-slasher
Ff107r77dve112m4 is a parallel to b5-slash gear reduction machine
Fh107 br77dve112m4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh107r77dve112m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dve112m4 is a parallel axle-slasher for the b5 axle
Fhz107r77dve112m4 is a parallel axle-slash-slasher for the b14 axle

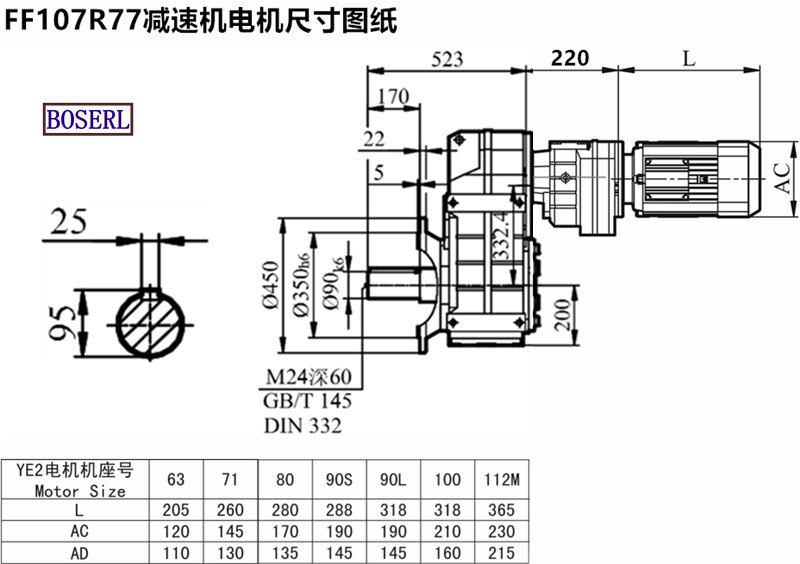

Ff107r77dve112m4 deviation motorInstall size drawings
Ff107r77dve112m4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
