FF107R77DVE71M4Detailed Information
Keyword: what parallel axle slasher is 45kw _ ff107r77dve71m4_ff107r77dr112m4
FF107R77DVE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DVE71M4 | 3037 | 0.37KW | 0.45r/min | 6850N.m | 448.5kg | 52000N | 1.10 |
| FF107R77DVE71M4 | 2756 | 0.37KW | 0.50r/min | 6210N.m | 448.5kg | 53500N | 1.25 |
| FF107R77DVE71M4 | 2369 | 0.37KW | 0.58r/min | 5340N.m | 448.5kg | 55500N | 1.45 |
| FF107R77DVE71M4 | 2068 | 0.37KW | 0.67r/min | 4660N.m | 448.5kg | 57000N | 1.65 |
| FF107R77DVE71M4 | 1597 | 0.37KW | 0.86r/min | 3570N.m | 448.5kg | 59300N | 2.20 |
Ff107r77dr112m4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DR112M4 | 333 | 4KW | 4.40r/min | 8120N.m | 484kg | 48600N | 0.95 |
| FF107R77DR112M4 | 291 | 4KW | 5.00r/min | 7090N.m | 484kg | 51300N | 1.10 |
| FF107R77DR112M4 | 255 | 4KW | 5.70r/min | 6210N.m | 484kg | 53500N | 1.25 |
Ff107r77dve71m4 deviation engineType:
F107r77dve71m4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dve71m4 foot hollow axis installed parallel axle-slash gear brakes
Fv107br77dve71m4 bottom feaces axis installation of parallel axes - tilt gear deviators
Fa107r77dve71m4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dve71m4 sky axis installation of parallel axes - tilt gear detortizer
Faf107r77dve71m4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf107r77dve71m4 is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz107r77dve71m4 is a parallel to the b14fan installation of a side axle-slasher
Fvz107r77dve71m4 is a parallel axle for b14 flannel axle-slasher
Ff107r77dve71m4 is a parallel to the b5-slash gear reduction machine
Fh107 br77dve71m4 foot hollow axle locks, parallel axle - slasher
Fh107r77dve71m4 is a parallel axle-slash-slasher for the empty axle lock
Fhf107r77dve71m4 is a parallel axle-slash-slasher for the b5 axle
Fhz107r77dve71m4 is a parallel axle for the b14 axle lockboard-slasher-slasher

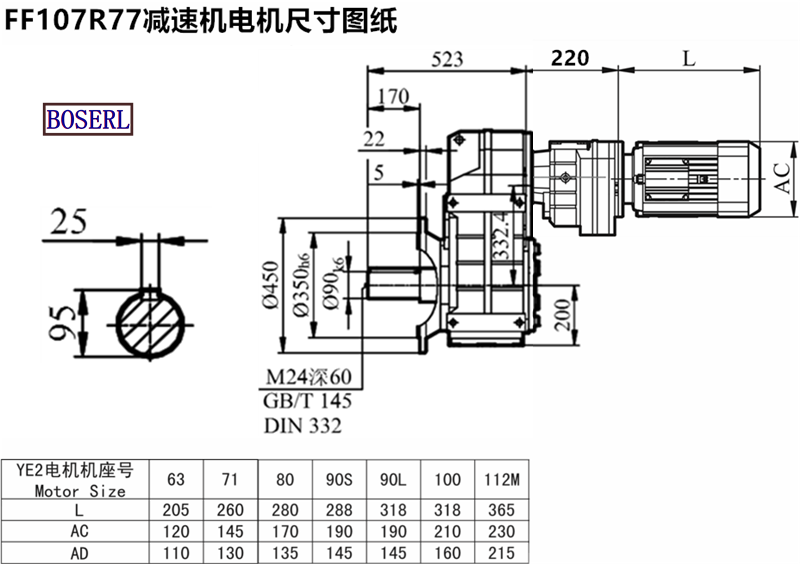

Ff107r77dve71m4 deviation engineInstall size drawings
Ff107r77dve71m4 deviation engineThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
