Ff127 power-mobilized brakes

TEL：Email:[email protected]

详细信息

Keyword: ff127 emp_ff127 y200m4_ff127 y225m4_ff127 emp_ff127 emp manufacturer_ff127 emp

FF127Y200M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF127Y200M4	75.41	30KW	20.0rpm	14600N.m	953kg	64500N	0.80
FF127Y200M4	70.07	30KW	21.0rpm	13600N.m	953kg	65700N	0.90
FF127Y200M4	63.91	30KW	23.0rpm	12400N.m	953kg	66800N	0.95
FF127Y200M4	55.31	30KW	27.0rpm	10700N.m	953kg	66700N	1.10
FF127Y200M4	48.80	30KW	30.0rpm	9470N.m	953kg	66300N	1.25
FF127Y200M4	42.15	30KW	35.0rpm	8180N.m	953kg	65500N	1.45
FF127Y200M4	37.28	30KW	40.0rpm	7240N.m	953kg	64700N	1.65
FF127Y200M4	26.86	30KW	55.0rpm	5210N.m	953kg	61800N	1.65
FF127Y200M4	24.57	30KW	60.0rpm	4770N.m	953kg	60800N	1.80
FF127Y200M4	31.33	30KW	47.0rpm	6080N.m	953kg	63200N	1.95
FF127Y200M4	25.30	30KW	58.0rpm	4910N.m	953kg	61100N	2.40
FF127Y200M4	21.38	30KW	69.0rpm	4150N.m	953kg	59300N	2.90
FF127Y200M4	18.87	30KW	78.0rpm	3660N.m	953kg	57900N	3.00

Ff127y225m4 reduction machine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF127Y225M4	48.80	45KW	30.0rpm	14100N.m	1035kg	51600N	0.85
FF127Y225M4	42.15	45KW	35.0rpm	12200N.m	1035kg	54300N	1.00
FF127Y225M4	37.28	45KW	40.0rpm	10800N.m	1035kg	55800N	1.10
FF127Y225M4	26.86	45KW	55.0rpm	7810N.m	1035kg	55700N	1.10
FF127Y225M4	24.57	45KW	60.0rpm	7140N.m	1035kg	55300N	1.20
FF127Y225M4	31.33	45KW	47.0rpm	9100N.m	1035kg	56100N	1.30
FF127Y225M4	25.30	45KW	58.0rpm	7350N.m	1035kg	55400N	1.65
FF127Y225M4	21.38	45KW	69.0rpm	6210N.m	1035kg	54500N	1.95
FF127Y225M4	18.87	45KW	78.0rpm	5480N.m	1035kg	53600N	2.00
FF127Y225M4	16.36	45KW	90.0rpm	4750N.m	1035kg	52600N	2.30
FF127Y225M4	14.55	45KW	102rpm	4230N.m	1035kg	51600N	2.60
FF127Y225M4	12.54	45KW	118rpm	3640N.m	1035kg	50300N	2.70
FF127Y225M4	10.19	45KW	145rpm	2960N.m	1035kg	48300N	3.20
FF127Y225M4	8.86	45KW	167rpm	2570N.m	1035kg	46500N	2.70
FF127Y225M4	7.88	45KW	187rpm	2290N.m	1035kg	45400N	2.60
FF127Y225M4	6.80	45KW	218rpm	1970N.m	1035kg	44000N	3.50
FF127Y225M4	5.52	45KW	268rpm	1600N.m	1035kg	42000N	3.70

Ff127 power-mobilized brakesType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

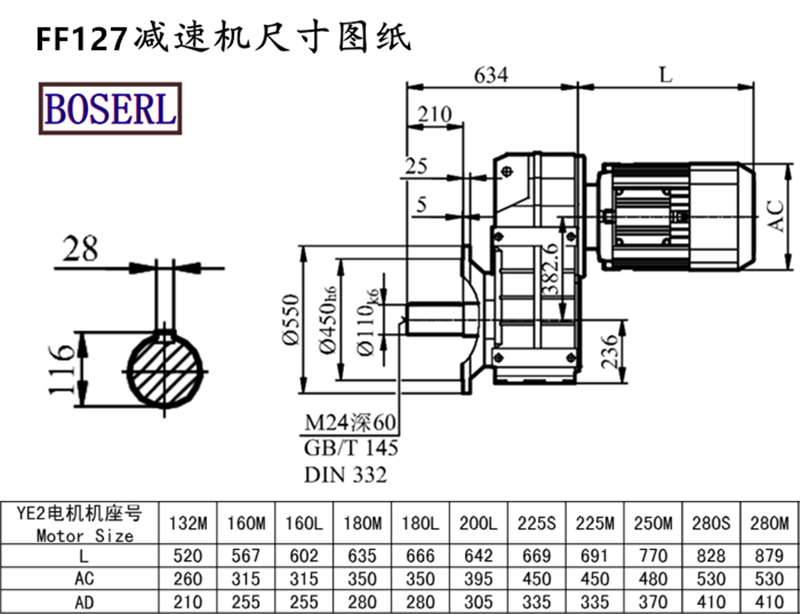

Ff127 power-mobilized brakesInstall size drawings

Ff127 power-mobilized brakesThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: Ff127 momental detor 127y200m4 127y225m4 127 power detortort 127 power detortortment plant

上一条Ff127 gearbox
下一条Ff127 electric retrenchor

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FF127电动机减速器样本
FF127电动机减速器三维图纸
