FF127R77DM132ML4Detailed Information
Keywords: what parallel axle slasher _ ff127r77dm132ml4_ff127r77drs80mk4
FF127R77DM132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DM132ML4 | 428 | 5.5KW | 3.40r/min | 14400N.m | 796kg | 85700N | 0.85 |
| FF127R77DM132ML4 | 376 | 5.5KW | 3.90r/min | 12600N.m | 796kg | 89200N | 0.95 |
Ff127r77drs80mk4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DRS80MK4 | 3926 | 0.55KW | 0.35r/min | 13200N.m | 751kg | 88100N | 0.90 |
| FF127R77DRS80MK4 | 3454 | 0.55KW | 0.40r/min | 11500N.m | 751kg | 90000N | 1.05 |
| FF127R77DRS80MK4 | 3031 | 0.55KW | 0.46r/min | 10100N.m | 751kg | 90000N | 1.20 |
Ff127r77dm132ml4 motor for reduction machinesType:
F127r77dm132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa127br77dm132ml4 foot hollow axis installed parallel axle-slash gear brakes
Fv127br77dm132ml4 bottom feet sky axes installation of parallel axes - tilt gear deviators
Fa127r77dm132ml4 sky axes installation of parallel axes - tilt gear deviators
Fv127r77dm132ml4 sky axis installation of parallel axes - tilt-truck-trinkler
Faf127r77dm132ml4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf127r77dm132ml4 is the parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r77dm132ml4 is a parallel axle of b14 installed in flange - a slasher
Fvz127r77dm132ml4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r77dm132ml4 is a parallel to the b5 installation of a side axle - a slasher
Fh127 br77dm132 ml4 foot hollow axle locks, parallel axle-slasher
Fh127r77dm132ml4 is a parallel axle-sweet-pattern-reducing machine for an empty axle lock
Fhf127r77dm132ml4 is a parallel axle for the b5 axle lock, a slasher
Fhz127r77dm132ml4 is the parallel axle of the b14 axle lock plate-slasher

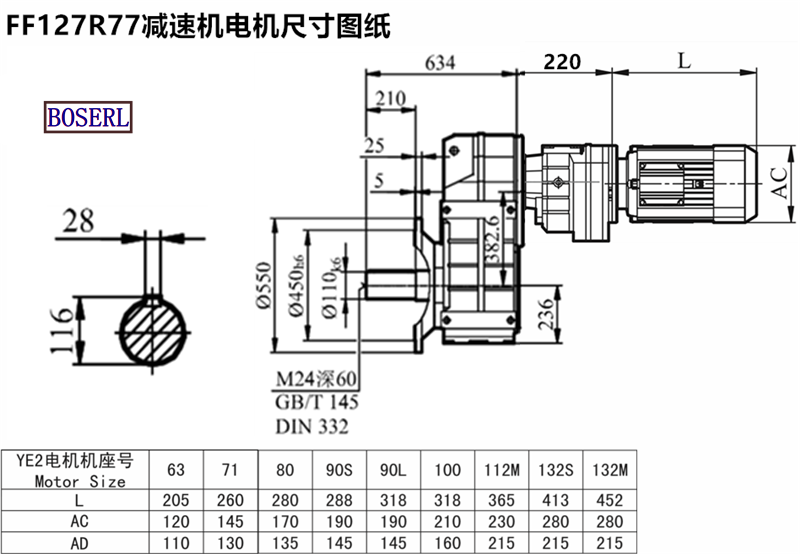

Ff127r77dm132ml4 motor for reduction machinesInstall size drawings
Ff127r77dm132ml4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 45kw 127r77dm132ml4ffff127r77drs80mk4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R77DM132ML4减速机样本 |
|
| FF127R77DM132ML4减速机三维图纸 |
|
