FF127R77DR132ML4Detailed Information
Keywords: what parallel axle slasher _ ff127r77dr132ml4_ff127r77dve100l4
FF127R77DR132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DR132ML4 | 428 | 5.5KW | 3.40r/min | 14400N.m | 796kg | 85700N | 0.85 |
| FF127R77DR132ML4 | 376 | 5.5KW | 3.90r/min | 12600N.m | 796kg | 89200N | 0.95 |
Ff127r77dve100l4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DVE100L4 | 727 | 3KW | 2.00r/min | 13200N.m | 771kg | 88100N | 0.90 |
| FF127R77DVE100L4 | 648 | 3KW | 2.20 r/min | 11800N.m | 771kg | 90000N | 1.00 |
| FF127R77DVE100L4 | 549 | 3KW | 2.60r/min | 10000N.m | 771kg | 90000N | 1.20 |
| FF127R77DVE100L4 | 495 | 3KW | 2.90r/min | 9040N.m | 771kg | 90000N | 1.35 |
Ff127r77dr132ml4 deviation motorType:
F127r77dr132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br77dr132ml 4 foot hollow axis installation parallel axis - tilt gear reduction machine
Fv127 br77dr132ml4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r77dr132ml4 sky axis installation of parallel axes-slash gear reduction machines
Fv127r77dr132ml4 sky axis installation of parallel axes - tilt-trinkler
Faf127r77dr132ml4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf127r77dr132ml4 is the parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r77dr132ml4 is a parallel axle for b14-slash gear reduction
Fvz127r77dr132ml4 is a parallel axle-slash gear-reducing machine for the b14 flannel core
Ff127r77dr132ml4 is a parallel axle for b5-slash gear brakes
Fh127 br77dr132 ml4 foot hollow axle locks, parallel axle - slasher
Fh127r77dr132ml4 is a parallel axle-sweet gear-reducing machine installed on an empty axle lock
Fhf127r77dr132ml4 is a parallel axle for the b5 axle lock, a slasher
Fhz127r77dr132ml4 is the parallel axle of the b14 axle lock, a slasher

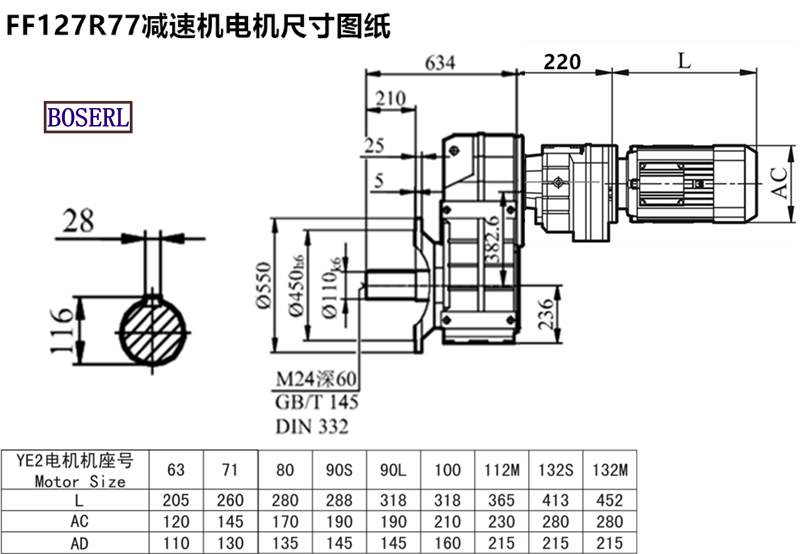

Ff127r77dr132ml4 deviation motorInstall size drawings
Ff127r77dr132ml4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 55kw 127r77r132ml4 ff127r77dve100l4
