FF127R77DT100LC4Detailed Information
Keyword: what parallel axle slasher _ ff127r77dt100lc4_ff127r77dre132mc4
FF127R77DT100LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DT100LC4 | 727 | 3KW | 2.00r/min | 13200N.m | 771kg | 88100N | 0.90 |
| FF127R77DT100LC4 | 648 | 3KW | 2.20 r/min | 11800N.m | 771kg | 90000N | 1.00 |
| FF127R77DT100LC4 | 549 | 3KW | 2.60r/min | 10000N.m | 771kg | 90000N | 1.20 |
| FF127R77DT100LC4 | 495 | 3KW | 2.90r/min | 9040N.m | 771kg | 90000N | 1.35 |
Ff127r77dre132mc4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DRE132MC4 | 428 | 5.5KW | 3.40r/min | 14400N.m | 796kg | 85700N | 0.85 |
| FF127R77DRE132MC4 | 376 | 5.5KW | 3.90r/min | 12600N.m | 796kg | 89200N | 0.95 |
Ff127r77dt100lc4 deviation motorType:
F127r77dt100lc4 bottom foot installation parallel axes - tilt gearGearboc
Fa127br77dt100lc4 foot hollow axis installed parallel axle-slash gear brake
Fv127br77dt100lc4 bottom feet sky axes installation of parallel axes - tilt gear deviators
Fa127r77dt100lc4 sky axes installation of parallel axes - tilt gear deviators
Fv127r77dt100lc4 sky axis installation of parallel axes - tilt-tort-truck deviators
Faf127r77dt100lc4 is a parallel axle of the b5 aerocentric axle-slasher
Fvf127r77dt100lc4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis
Faz127r77dt100lc4 is a parallel to the b14 flange-slash gear reduction machine
Fvz127r77dt100lc4 is a parallel axle-slash gear-reducing machine for the b14 flannel axis
Ff127r77dt100lc4 is a parallel to the b5 installation of a side axle-slasher
Fh127 br77dt100lc4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh127r77dt100lc4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r77dt100lc4 is the parallel axle of the b5 axle lock, a slasher
Fhz127r77dt100lc4 is a parallel axle-slasher for the b14 axle lock

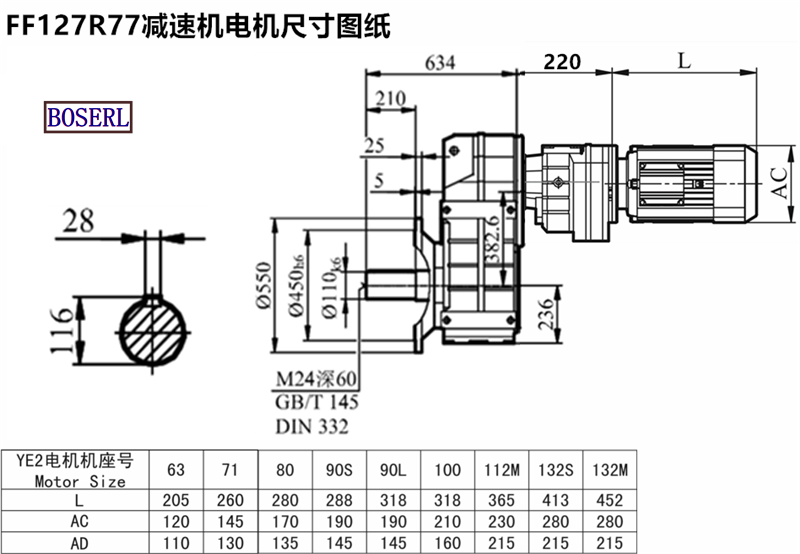

Ff127r77dt100lc4 deviation motorInstall size drawings
Ff127r77dt100lc4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 200kw 127r77dt100lc4 127r77dre132mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R77DT100LC4减速机样本 |
|
| FF127R77DT100LC4减速机三维图纸 |
|
