FF127R77DT132ML4Detailed Information
Keywords: 1. 5 kw side-axis slasher_ ff127r77dt132ml4_ff127r77drre90s4
FF127R77DT132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DT132ML4 | 428 | 5.5KW | 3.40r/min | 14400N.m | 796kg | 85700N | 0.85 |
| FF127R77DT132ML4 | 376 | 5.5KW | 3.90r/min | 12600N.m | 796kg | 89200N | 0.95 |
Ff127r77drre90s4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R77DRE90S4 | 2038 | 1.1KW | 0.70r/min | 13700N.m | 756kg | 87000N | 0.85 |
| FF127R77DRE90S4 | 1784 | 1.1KW | 0.80r/min | 12000N.m | 756kg | 90000N | 1.00 |
| FF127R77DRE90S4 | 1606 | 1.1KW | 0.88r/min | 10700N.m | 756kg | 90000N | 1.10 |
| FF127R77DRE90S4 | 1390 | 1.1KW | 1.00r/min | 9330N.m | 756kg | 90000N | 1.30 |
| FF127R77DRE90S4 | 1220 | 1.1KW | 1.20r/min | 8150N.m | 756kg | 90000N | 1.45 |
| FF127R77DRE90S4 | 1077 | 1.1KW | 1.30r/min | 7250N.m | 756kg | 90000N | 1.65 |
Ff127r77dt132ml4 deviation motorType:
F127r77dt132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa127br77dt132ml 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv127br77dt132ml4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r77dt132ml4 sky axes installation of parallel axes - tilt gear deviators
Fv127r77dt132ml4 sky axis installation of parallel axes - tilt gear deviators
Faf127r77dt132ml4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf127r77dt132ml4 is the parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz127r77dt132ml4 is a parallel to the b14 flange-slash gear reduction machine
Fvz127r77dt132ml4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r77dt132ml4 is a parallel axle for b5-slash gear reduction
Fh127br77dt132ml4 foot hollow axle locks, parallel axle - slasher
Fh127r77dt132ml4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock
Fhf127r77dt132ml4 is a parallel axle-slasher for b5 axle locks
Fhz127r77dt132ml4 is a parallel axle-slash-slasher for the b14 axle lock

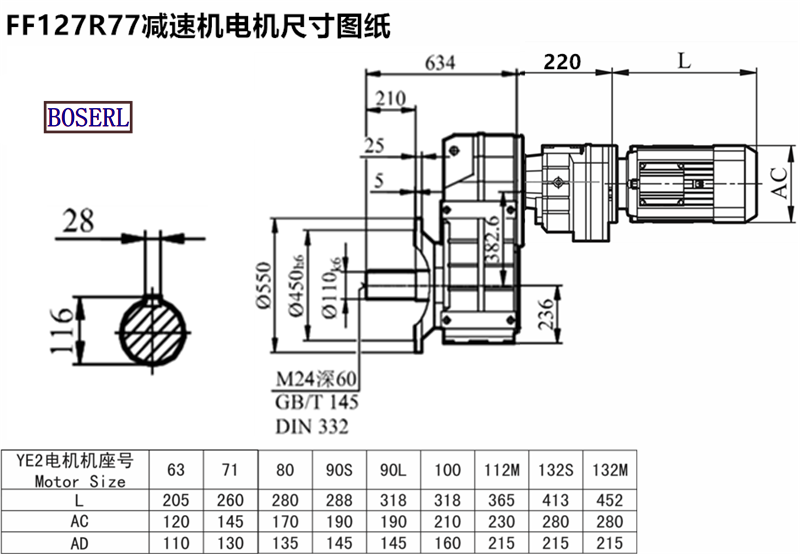

Ff127r77dt132ml4 deviation motorInstall size drawings
Ff127r77dt132ml4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
