FF127R87DM132ML4Detailed Information
Keyword: 11kw power with a parallel axle decelerator_ff127r87dm132ml4_ff127r87drrs160s4
FF127R87DM132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DM132ML4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FF127R87DM132ML4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FF127R87DM132ML4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FF127R87DM132ML4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FF127R87DM132ML4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Ff127r87drrs160s4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRS160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DRS160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DRS160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87dm132ml4 deviation engineType:
F127r87dm132ml4 bottom foot installation parallel axes - tilt gearsGearboc
Fa127 br87dm132 ml4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dm132ml4 bottom feet sky axis installation of parallel axes - tilt gear deviators
Fa127r87dm132ml4 sky axis installation parallel axle-slash gear brakes
Fv127r87dm132ml4 sky axis installation of parallel axes - tilt-truck deviators
Faf127r87dm132ml4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dm132ml4 is a parallel axle-slash-pattern reduction machine for b5 flannel cores
Faz127r87dm132ml4 is a parallel axle for b14-slash gear reduction
Fvz127r87dm132ml4 is a parallel axle for b14 flannel axle-slash gear-reducing machine
Ff127r87dm132ml4 is a parallel to the b5-slash gear brake
Fh127 br87dm132ml4 foot hollow axle locks to install parallel axles - slash gears to slow down
Fh127r87dm132ml4 is a parallel axle-slash-slasher for the empty axle lock
Fhf127r87dm132ml4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dm132ml4 is the parallel axle of the b14 aerocentric lockboard-slasher-slasher

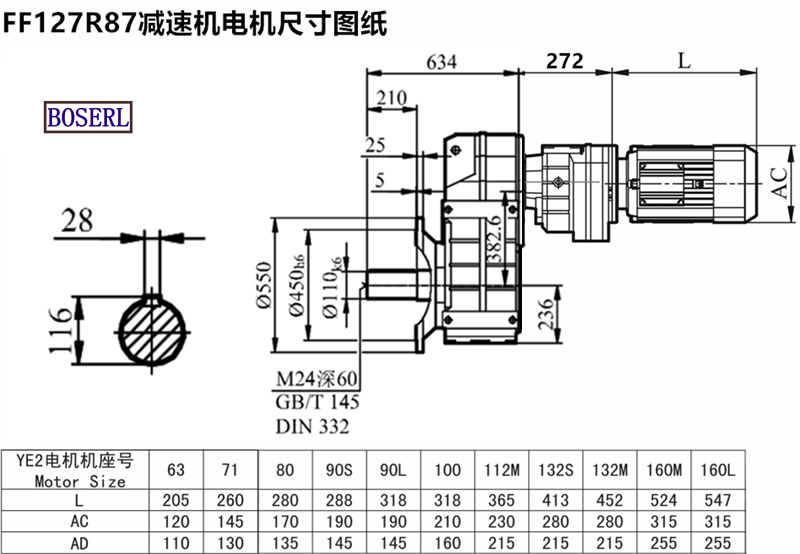

Ff127r87dm132ml4 deviation engineInstall size drawings
Ff127r87dm132ml4 deviation engineThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 11kw's power plant with a parallel axle decelerator 127r87dm132ml4ffff127r87drrs160s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DM132ML4减速机样本 |
|
| FF127R87DM132ML4减速机三维图纸 |
|
