FF127R87DM160M4Detailed Information
Keywords: 11kw with what parallel axle gear brakes_ ff127r87dm160m4_ff127r87drrs132m4
FF127R87DM160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DM160M4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DM160M4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DM160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87drrs132m4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRS132M4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FF127R87DRS132M4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FF127R87DRS132M4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FF127R87DRS132M4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FF127R87DRS132M4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FF127R87DRS132M4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Ff127 r87dm160m4 deviation motorType:
F127r87dm160m4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dm160m4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dm160m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dm160m4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dm160m4 sky axis installation of parallel axes - tilt-trinkler
Faf127r87dm160m4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf127r87dm160m4 is the parallel axle of the b5-franco-axe-silver-silver-turpors
Faz127r87dm160m4 is a parallel axle of b14-slash gear brakes
Fvz127r87dm160m4 is a parallel axle of b14 flannel cardiac axle-slasher
Ff127r87dm160m4 is a parallel to the b5-slash gear brake
Fh127 br87dm160m4 foot hollow axle locks, parallel axle-slash-slasher
Fh127r87dm160m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dm160m4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dm160m4 is a parallel axle-slasher for b14 aerocardial axle lockboards-slashers

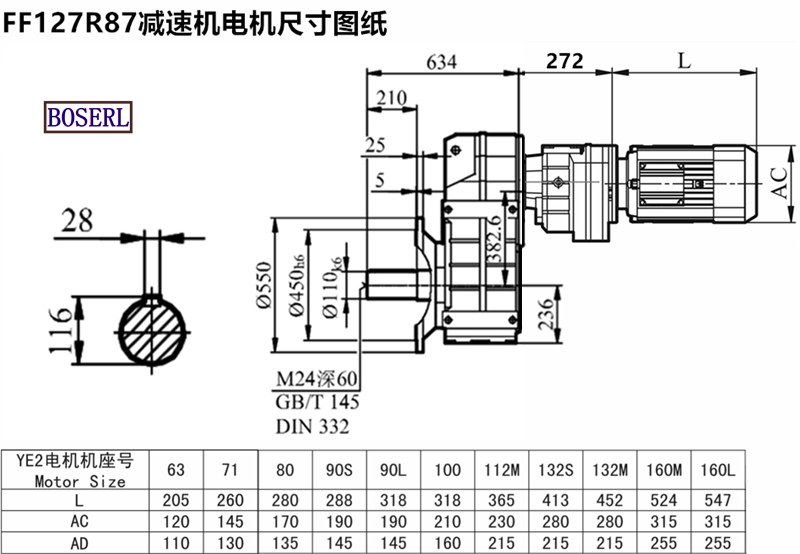

Ff127 r87dm160m4 deviation motorInstall size drawings
Ff127 r87dm160m4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 11kw 127r87dm160m4 127r87drs132m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DM160M4减速机样本 |
|
| FF127R87DM160M4减速机三维图纸 |
|
