FF127R87DM160MC4Detailed Information
Keywords: what parallel axle gear brakes _ ff127r87dm160mc4_ff127r87drrs132mc4
FF127R87DM160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DM160MC4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DM160MC4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DM160MC4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87drrs132mc4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRS132MC4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FF127R87DRS132MC4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FF127R87DRS132MC4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FF127R87DRS132MC4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FF127R87DRS132MC4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Ff127 r87dm160mc4 deviation motorType:
F127r87dm160mc4 bottom foot installation parallel axes - tied gearGearboc
Fa127 br87dm160mc4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dm160mc4 bottom feet cascular axes installation of parallel axes - tilted gear debrillator
Fa127r87dm160mc4 sky axis installation of parallel axle-slash gear brakes
Fv127r87dm160mc4 sky axis installation of parallel axes - tilt-trinkler
Faf127r87dm160mc4 is the parallel axis of the b5 aerocentric axle-slasher
Fvf127r87dm160mc4 is the parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz127r87dm160mc4 is a parallel axle for b14-slash gear brakes
Fvz127r87dm160mc4 is a parallel axle for the b14 flannel axle-slasher
Ff127r87dm160mc4 is a parallel axle for b5-slash gear reduction
Fh127 br87dm160mc4 foot hollow axle locks with parallel axles-slash gears reduction machines
Fh127r87dm160mc4 is a parallel axle-slash-slash gear-reducing machine for the empty axle lock
Fhf127r87dm160mc4 is a parallel axle-slasher for b5 axle locks
Fhz127r87dm160mc4 is the parallel axle of the b14 axle lock plate-slasher-slasher

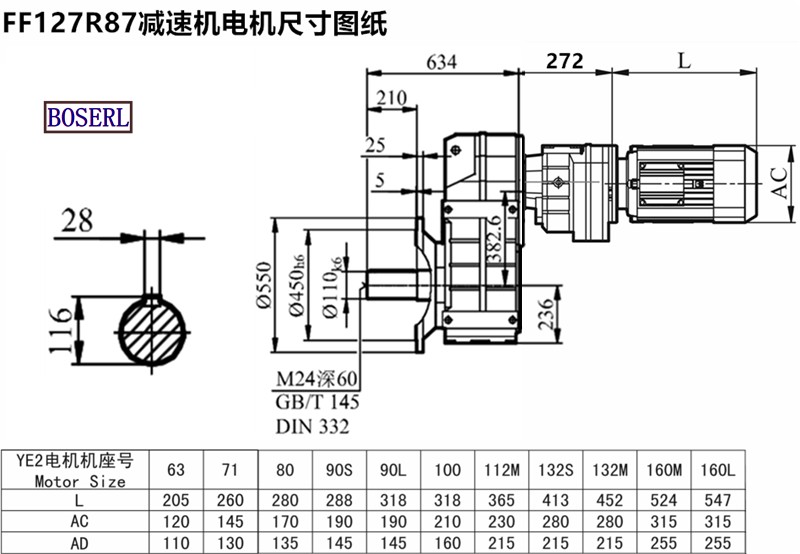

Ff127 r87dm160mc4 deviation motorInstall size drawings
Ff127 r87dm160mc4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 55kw 127 r87dm160mc4 127r87drs132mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DM160MC4减速机样本 |
|
| FF127R87DM160MC4减速机三维图纸 |
|
