FF127R87DM160S4Detailed Information
Keyword: 1. 1kw power with a parallel axle decelerator_ff127r87dm160s4_ff127r87drrs132l4
FF127R87DM160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DM160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DM160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DM160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87drrs132l4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRS132L4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FF127R87DRS132L4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FF127R87DRS132L4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FF127R87DRS132L4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FF127R87DRS132L4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Ff127 r87dm160s4 reduction motor Type:
F127r87dm160s4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dm160s 4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dm160s4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dm160s4 sky axis installation of parallel axle-slash gear reduction machine
Fv127r87dm160s4 installation of parallel axes-slash gear reduction machines
Faf127r87dm160s4 is a parallel axle for the b5 aerocentric axle — a slasher
Fvf127r87dm160s4 is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r87dm160s4 is a parallel axe-silver-silver-silver-silver-silver-slasher
Fvz127r87dm160s4 is a parallel axle of b14 flannel cardiac axle-slasher
Ff127r87dm160s4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dm160s 4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh127r87dm160s4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock
Fhf127r87dm160s4 is the parallel axle-slasher for the b5 axle
Fhz127r87dm160s4 is a parallel axle for the b14 axle lock-drive

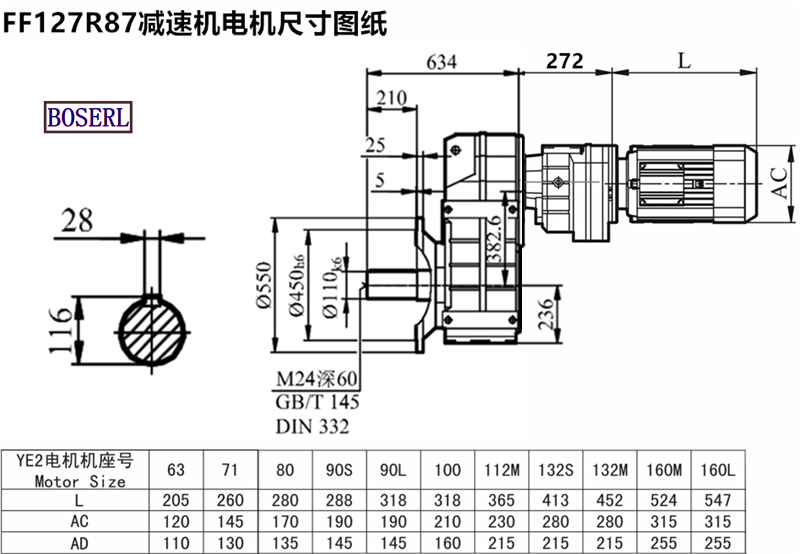

Ff127 r87dm160s4 reduction motor Install size drawings
Ff127 r87dm160s4 reduction motor The manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 1. 1kw's power plant with a parallel axle decelerator 127r87dm160s4ffff127r87drrs132l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DM160S4减速机样本 |
|
| FF127R87DM160S4减速机三维图纸 |
|
