FF127R87DT132S4Detailed Information
Keywords: what parallel axle gear brakes for 90kw _ff127r87dt132s4_ff127r87dre160l4
FF127R87DT132S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DT132S4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FF127R87DT132S4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FF127R87DT132S4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FF127R87DT132S4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FF127R87DT132S4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FF127R87DT132S4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Ff127r87dre160l4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRE160L4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DRE160L4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DRE160L4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87dt132s4 deviation motorType:
F127r87dt132s4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dt132s4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dt132s4 bottom feet sky axes installation of parallel axes - tilt gear detachors
Fa127r87dt132s4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dt132s4 sky axes installation of parallel axes - tilt-truck deviators
Faf127r87dt132s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dt132s4 is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127r87dt132s4 is a parallel axle for b14-slash gear reduction
Fvz127r87dt132s4 is a parallel axle of the b14 flannel axle-slasher
Ff127r87dt132s4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dt132s4 foot hollow axle locks to install parallel axles-slash gears reduction machines
Fh127r87dt132s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dt132s4 is a parallel axle for the b5 axle lock-drive
Fhz127r87dt132s4 is the parallel axle of the b14 axle lockboard-slasher-slasher

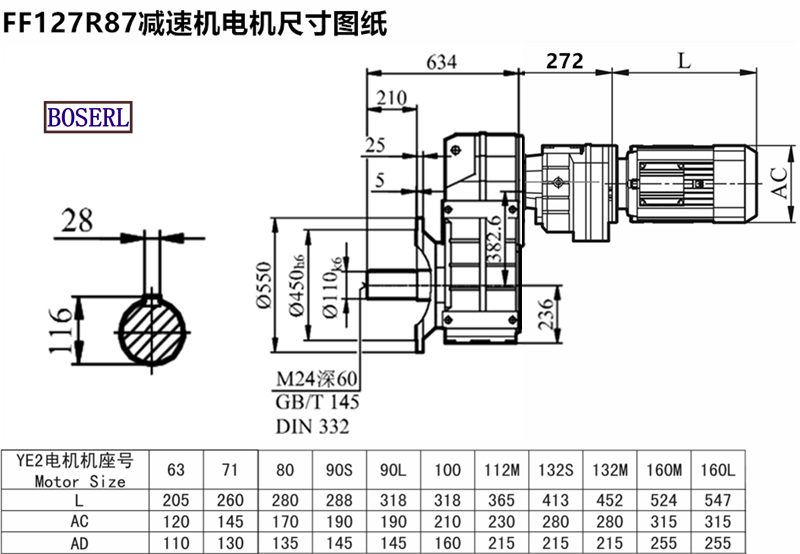

Ff127r87dt132s4 deviation motorInstall size drawings
Ff127r87dt132s4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 90kw 127r87dt132s4 127r87dre160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DT132S4减速机样本 |
|
| FF127R87DT132S4减速机三维图纸 |
|
