FF127R87DV132M4Detailed Information
Keyword: 4kw electric power with what parallel axle reduction machine ff127r87dv132m4_ff127r87drn160m4
FF127R87DV132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DV132M4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FF127R87DV132M4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FF127R87DV132M4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FF127R87DV132M4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FF127R87DV132M4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FF127R87DV132M4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Ff127r87drn160m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DRN160M4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DRN160M4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DRN160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87dv132m4 deviation motorType:
F127r87dv132m4 bottom foot installation parallel axes - tilt gearsGearboc
Fa127 br87dv132m4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv127 br87dv132m4 bottom feet axis installation of parallel axes - tilted gear deviators
Fa127r87dv132m4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dv132m4 sky axis installation of parallel axes - tilt gear detachors
Faf127r87dv132m4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf127r87dv132m4 is a parallel axle-slash gear-reducing machine for the b5-franco-air
Faz127r87dv132m4 is a parallel axle for b14-slash gear reduction
Fvz127r87dv132m4 is a parallel axle for the b14 flannel axle-slasher
Ff127r87dv132m4 is a parallel to the b5-slash gear reduction machine
Fh127 br87dv132m4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh127r87dv132m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dv132m4 is a parallel axle for the b5 axle locker-slasher-slasher
Fhz127r87dv132m4 is a parallel axle for the b14 axle lock, a slasher

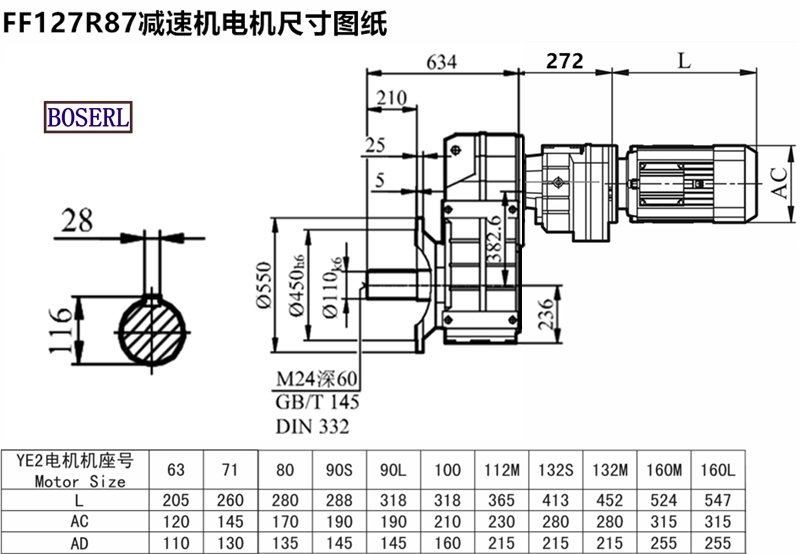

Ff127r87dv132m4 deviation motorInstall size drawings
Ff127r87dv132m4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 4kw's power plant with a parallel axle decelerator 127 r87dv132m4 127r87drn160m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DV132M4减速机样本 |
|
| FF127R87DV132M4减速机三维图纸 |
|
