FF127R87DVE160MC4Detailed Information
Keyword: what parallel axle decelerator for 55kw _ff127r87dve160mc4_ff127r87dr132mc4
FF127R87DVE160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DVE160MC4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DVE160MC4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DVE160MC4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127rf87-y132m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DR132MC4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FF127R87DR132MC4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FF127R87DR132MC4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FF127R87DR132MC4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FF127R87DR132MC4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Ff127r87dve160mc4 deviation engineType:
F127r87dve160mc4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dve160mc4 foot hollow axis installed parallel axle-slash gear brake
Fv127 br87dve160mc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dve160mc4 sky axes installation of parallel axes - tilted gear deviators
Fv127r87dve160mc4 sky axis installation of parallel axes - tilt-truck-trinkler
Faf127r87dve160mc4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf127r87dve160mc4 is a parallel axle-slash gear-reducing machine for the b5 franoid core axis
Faz127r87dve160mc4 is a parallel axle for b14-slash gear brakes
Fvz127r87dve160mc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r87dve160mc4 is a parallel axle for b5-slash gear reduction
Fh127 br87dve160mc4 foot hollow axle lock, parallel axle-slasher
Fh127r87dve160mc4 is a parallel axle-sorted gear-reducing machine for the empty axle lock
Fhf127r87dve160mc4 is the parallel axle of the b5 axle lock, the slasher
Fhz127r87dve160mc4 is a parallel axle-slash-slasher for the b14 axle

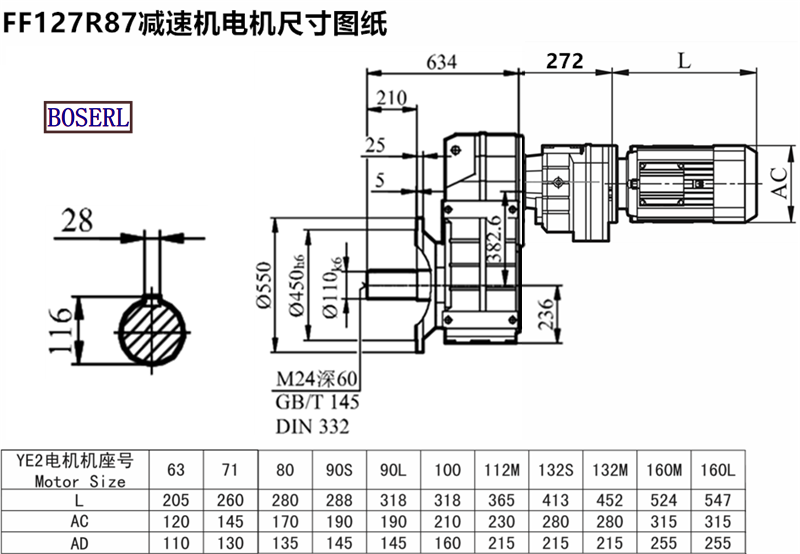

Ff127r87dve160mc4 deviation engineInstall size drawings
Ff127r87dve160mc4 deviation engineThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 55kw's power plant with a parallel axle decelerator 127r87dve160mc4 ff127r87dr132mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DVE160MC4减速机样本 |
|
| FF127R87DVE160MC4减速机三维图纸 |
|
