FF127R87DVE160S4Detailed Information
Keywords: what parallel axle gear brakes _ ff127r87dve160s4_ff127r87dr132l4
FF127R87DVE160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DVE160S4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FF127R87DVE160S4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FF127R87DVE160S4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Ff127r87dr132l4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF127R87DR132L4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FF127R87DR132L4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FF127R87DR132L4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FF127R87DR132L4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FF127R87DR132L4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Ff127r87dve160s4 deviation motionType:
F127r87dve160s4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dve160s 4 foot hollow axis installed parallel axle-slasher
Fv127 br87dve160s4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dve160s4 sky axis installation parallel axle-slash gear reduction machine
Fv127r87dve160s4 installing parallel axes-slash gear reduction machines
Faf127r87dve160s4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf127r87dve160s4 is a parallel axle-slash gear-reducing machine for the b5 franberry cardiac axis
Faz127r87dve160s4 is a parallel axle for b14frand - a slasher
Fvz127r87dve160s4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r87dve160s4 is a parallel to the b5-slash gear brake
Fh127 br87dve160s bottom feet axle lockboard installation of parallel axes - tilt gear deviators
Fh127r87dve160s4 is a parallel axle-slash-slasher for a hollow axle lock
Fhf127r87dve160s4 is a parallel axle-slasher for b5 axle locks
Fhz127r87dve160s4 is a parallel axle-slash-slasher for the b14 axle lock

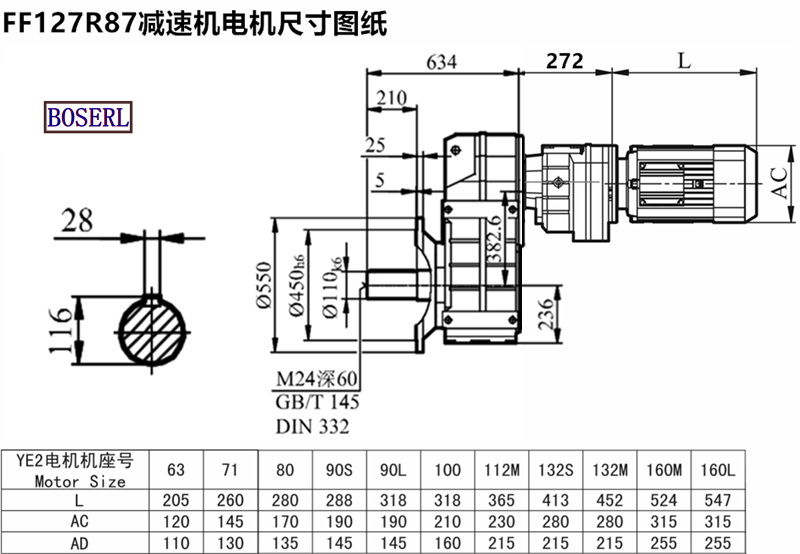

Ff127r87dve160s4 deviation motionInstall size drawings
Ff127r87dve160s4 deviation motionThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 45kw 127r87dve160s4ffff127r87dr132l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF127R87DVE160S4减速机样本 |
|
| FF127R87DVE160S4减速机三维图纸 |
|
