Ff157 motor speed reduction machineDetailed Information
Keywords: ff157 electric motion detor_ff157y45kw_ff157y55kw_ff157 electric moment processor_ff157 electric moment producer_ff157 electric moment generator
FF157Y45KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157Y45KW | 68.28 | 45KW | 22.0rpm | 19800N.m | 1285kg | 81400N | 0.90 |
| FF157Y45KW | 60.25 | 45KW | 25.0rpm | 17500N.m | 1285kg | 81600N | 1.05 |
| FF157Y45KW | 52.24 | 45KW | 28.0rpm | 15100N.m | 1285kg | 81300N | 1.20 |
| FF157Y45KW | 46.48 | 45KW | 32.0rpm | 13500N.m | 1285kg | 80800N | 1.35 |
| FF157Y45KW | 40.06 | 45KW | 37.0rpm | 11600N.m | 1285kg | 79800N | 1.55 |
| FF157Y45KW | 32.55 | 45KW | 45.0rpm | 9460N.m | 1285kg | 78000N | 1.90 |
| FF157Y45KW | 27.60 | 45KW | 54.0rpm | 8020N.m | 1285kg | 76200N | 2.20 |
Ff157y55kwreducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157Y55KW | 60.25 | 55KW | 24.0rpm | 21400N.m | 1370kg | 73800N | 0.85 |
| FF157Y55KW | 52.24 | 55KW | 28.0rpm | 18600N.m | 1370kg | 74600N | 0.95 |
| FF157Y55KW | 46.48 | 55KW | 32.0rpm | 16500N.m | 1370kg | 74800N | 1.10 |
| FF157Y55KW | 40.06 | 55KW | 37.0rpm | 14200N.m | 1370kg | 74700N | 1.25 |
| FF157Y55KW | 32.55 | 55KW | 45.0rpm | 11500N.m | 1370kg | 73800N | 1.55 |
| FF157Y55KW | 27.60 | 55KW | 53.0rpm | 9820N.m | 1370kg | 72600N | 1.85 |
| FF157Y55KW | 28.60 | 55KW | 52.0rpm | 10100N.m | 1370kg | 72900N | 1.65 |
| FF157Y55KW | 25.43 | 55KW | 58.0rpm | 9050N.m | 1370kg | 71900N | 1.65 |
| FF157Y55KW | 22.16 | 55KW | 67.0rpm | 7890N.m | 1370kg | 70600N | 2.30 |
| FF157Y55KW | 19.77 | 55KW | 75.0rpm | 7030N.m | 1370kg | 69400N | 2.40 |
| FF157Y55KW | 16.85 | 55KW | 88.0rpm | 6000N.m | 1370kg | 67600N | 3.00 |
Ff157 motor reduction machineType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

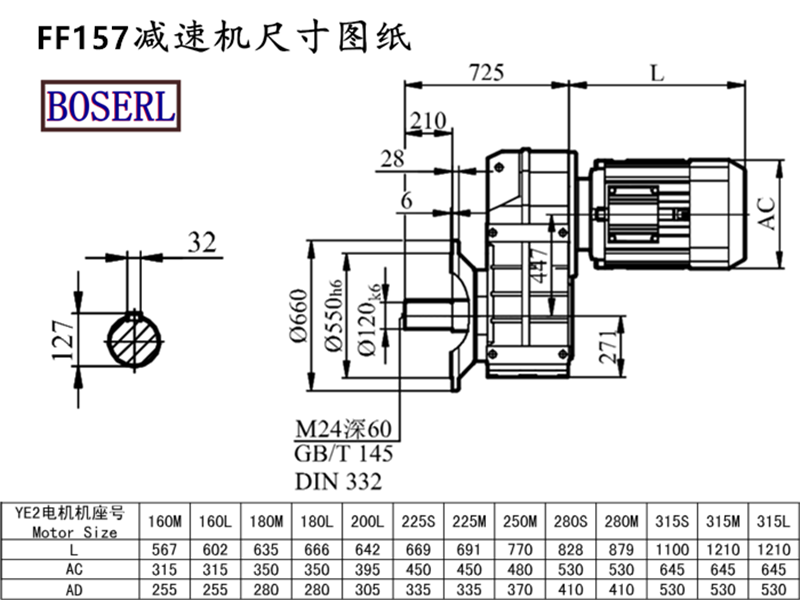

Ff157 motor reduction machineInstall size drawings
Ff157 motor reduction machineThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Ff157 power-drive machine ff157y45kw ff157y55kw ff157 electric-drive ff157 electric-drive manufacturer ff157 electric-drive manufacturer
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF157电动机减速机样本 |
|
| FF157电动机减速机三维图纸 |
|
