FF157R97DM180L4Detailed Information
Keyword: what is the 4kw electric power with a parallel axle slasher? ff157r97dm180l4_ff157r97drrs132s4
FF157R97DM180L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DM180L4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FF157R97DM180L4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Ff157r97drrs132s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DRS132S4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| FF157R97DRS132S4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| FF157R97DRS132S4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| FF157R97DRS132S4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| FF157R97DRS132S4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| FF157R97DRS132S4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| FF157R97DRS132S4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| FF157R97DRS132S4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| FF157R97DRS132S4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
Ff157r97dm180l4 motor for reduction machinesType:
F157r97dm180l4 bottom foot installation parallel axes - tied gearGearboc
Fa157br97dm180l4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dm180l4 foot cores installed parallel axle-slash gear reduction machine
Fa157r97dm180l4 sky axis installation of parallel axes - slash gearers
Fv157r97dm180l4 sky axis installation of parallel axes - tilt-trinkler
Faf157r97dm180l4 is a parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dm180l4 is the parallel axle of b5 flannel cortex installed - the slasher
Faz157r97dm180l4 is a parallel axle of b14-slash gear reduction
Fvz157r97dm180l4 is a parallel axle of the b14 flannel cardiac axle-slasher
Ff157r97dm180l4 is a parallel axle for b5-slash gear brakes
Fh157 br97dm180l4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh157r97dm180l4 is the parallel axle-slash-slash gear-reducing machine for the empty axle lock
Fhf157r97dm180l4 is a parallel axle for the b5 axle lock-drive
Fhz157r97dm180l4 is a parallel axle of b14 flannel axle lockboard-slasher-slasher

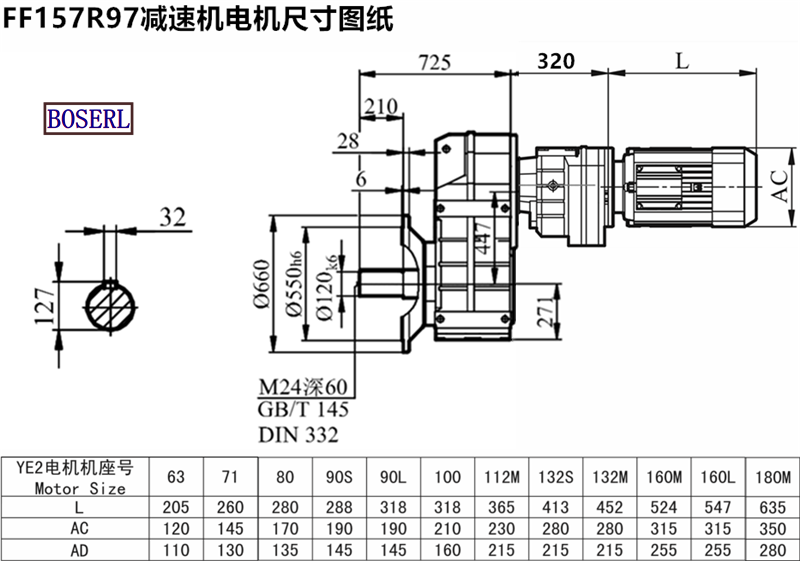

Ff157r97dm180l4 motor for reduction machinesInstall size drawings
Ff157r97dm180l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
