FF157R97DR160M4Detailed Information
Keyword: what kind of parallel axle-reducing power is 3kw? ff157r97dr160m4_ff157r97dve90m4
FF157R97DR160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DR160M4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FF157R97DR160M4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FF157R97DR160M4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FF157R97DR160M4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FF157R97DR160M4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Ff157r97dve90m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DVE90M4 | 2780 | 1.1KW | 0.51r/min | 17900N.m | 1,071kg | 100500N | 1.00 |
| FF157R97DVE90M4 | 2427 | 1.1KW | 0.58r/min | 15800N.m | 1,071kg | 106100N | 1.15 |
| FF157R97DVE90M4 | 2185 | 1.1KW | 0.65r/min | 14100N.m | 1,071kg | 110000N | 1.25 |
| FF157R97DVE90M4 | 1944 | 1.1KW | 0.73r/min | 12500N.m | 1,071kg | 113100N | 1.45 |
| FF157R97DVE90M4 | 1674 | 1.1KW | 0.85r/min | 11100N.m | 1,071kg | 115600N | 1.60 |
| FF157R97DVE90M4 | 1308 | 1.1KW | 1.10r/min | 8610N.m | 1,071kg | 119100N | 2.10 |
| FF157R97DVE90M4 | 1169 | 1.1KW | 1.20r/min | 7630N.m | 1,071kg | 120000N | 2.40 |
| FF157R97DVE90M4 | 953 | 1.1KW | 1.50r/min | 6100N.m | 1,071kg | 120000N | 3.00 |
| FF157R97DVE90M4 | 845 | 1.1KW | 1.70r/min | 5330N.m | 1,071kg | 120000N | 3.40 |
| FF157R97DVE90M4 | 446 | 1.1KW | 3.20r/min | 2810N.m | 1,071kg | 120000N | 6.40 |
| FF157R97DVE90M4 | 302 | 1.1KW | 4.70r/min | 1900 N.m | 1,071kg | 120000N | 9.40 |
Ff157r97dr160m4 deviation motorType:
F157r97dr160m4 bottom foot installation parallel axes - tied gearGearboc
Fa157 br97dr160m4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv157 br97dr160m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dr160m4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dr160m4 sky axes installation of parallel axes - tilted gear deviators
Faf157r97dr160m4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dr160m4 is a parallel axle with b5 flannel axle-slasher
Faz157r97dr160m4 is a parallel axle of b14-slash gear reduction
Fvz157r97dr160m4 is a parallel axle for the b14 flannel axle-slasher
Ff157r97dr160m4 is a parallel axle of b5-slash gear reduction
Fh157 br97dr160m4 foot hollow axle locks, parallel axle-slasher
Fh157r97dr160m4 is a parallel axle-sweet-pattern-reducing machine for the empty axle lock
Fhf157r97dr160m4 is a parallel axle for the b5 axle lock, a slasher
Fhz157r97dr160m4 is a parallel axle for the b14 axle lock-drive

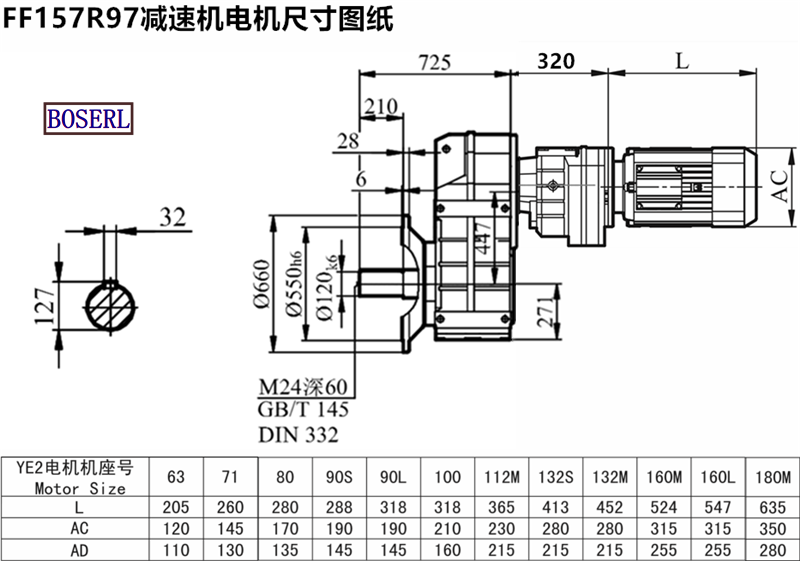

Ff157r97dr160m4 deviation motorInstall size drawings
Ff157r97dr160m4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
