FF157R97DR90S4Detailed Information
Keyword: 18. 5 kw power with a parallel axle gear-reducing power _ ff157r97dr90s4_ff157r97dve180s4
FF157R97DR90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DR90S4 | 2780 | 1.1KW | 0.51r/min | 17900N.m | 1,071kg | 100500N | 1.00 |
| FF157R97DR90S4 | 2427 | 1.1KW | 0.58r/min | 15800N.m | 1,071kg | 106100N | 1.15 |
| FF157R97DR90S4 | 2185 | 1.1KW | 0.65r/min | 14100N.m | 1,071kg | 110000N | 1.25 |
| FF157R97DR90S4 | 1944 | 1.1KW | 0.73r/min | 12500N.m | 1,071kg | 113100N | 1.45 |
| FF157R97DR90S4 | 1674 | 1.1KW | 0.85r/min | 11100N.m | 1,071kg | 115600N | 1.60 |
| FF157R97DR90S4 | 1308 | 1.1KW | 1.10r/min | 8610N.m | 1,071kg | 119100N | 2.10 |
| FF157R97DR90S4 | 1169 | 1.1KW | 1.20r/min | 7630N.m | 1,071kg | 120000N | 2.40 |
| FF157R97DR90S4 | 953 | 1.1KW | 1.50r/min | 6100N.m | 1,071kg | 120000N | 3.00 |
| FF157R97DR90S4 | 845 | 1.1KW | 1.70r/min | 5330N.m | 1,071kg | 120000N | 3.40 |
| FF157R97DR90S4 | 446 | 1.1KW | 3.20r/min | 2810N.m | 1,071kg | 120000N | 6.40 |
| FF157R97DR90S4 | 302 | 1.1KW | 4.70r/min | 1900 N.m | 1,071kg | 120000N | 9.40 |
Ff157r97dve180s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DVE180S4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FF157R97DVE180S4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Ff157r97dr90s4 deviation motorType:
F157r97dr90s4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dr90s 4 foot hollow axis installed parallel axle-slash gear brakes
Fv157 br97dr90s4 bottom feet cascular axes installation of parallel axes - tilted gear deviators
Fa157r97dr90s4 sky axes installation of parallel axes - tied gear deviators
Fv157r97dr90s4 sky axis installation of parallel axes - tilted gear deviators
Faf157r97dr90s4 is a parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dr90s4 is a parallel axle-slash gear-reducing machine for the b5 franculus cavity axis
Faz157r97dr90s4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz157r97dr90s4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dr90s4 is a parallel axle for b5-slash gear brakes
Fh157 br97dr90s 4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh157r97dr90s4 is a parallel axle-sorted gear-reducing machine for the empty axle lock
Fhf157r97dr90s4 is a parallel axle for the b5 axle lock-drive
Fhz157r97dr90s4 is a parallel axle for the b14 axle lock plate-slasher

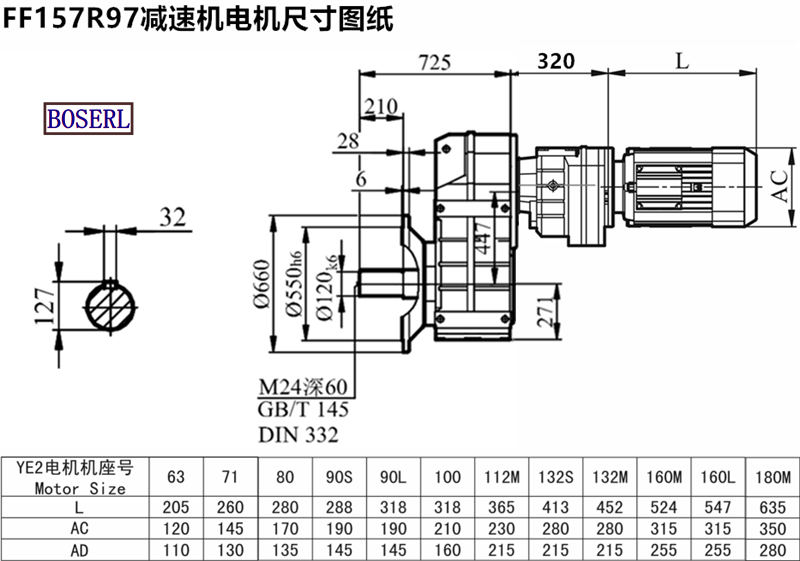

Ff157r97dr90s4 deviation motorInstall size drawings
Ff157r97dr90s4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What's a parallel axle gear-reducing power plant with 18. 5 kw? ff157r97dr90s4_ff157r97dve180s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF157R97DR90S4减速机样本 |
|
| FF157R97DR90S4减速机三维图纸 |
|
