FF157R97DV132L4Detailed Information
Keyword: what kind of parallel axle gear brake for 3kw _ff157r97dv132l4_ff157r97drrn160s4
FF157R97DV132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DV132L4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| FF157R97DV132L4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| FF157R97DV132L4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| FF157R97DV132L4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| FF157R97DV132L4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| FF157R97DV132L4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| FF157R97DV132L4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| FF157R97DV132L4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| FF157R97DV132L4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
Ff157r97drn160s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DRN160S4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FF157R97DRN160S4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FF157R97DRN160S4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FF157R97DRN160S4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FF157R97DRN160S4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Ff157r97dv132l4 motor for reduction machinesType:
F157r97dv132l4 bottom foot installation parallel axes - tied gearGearboc
Fa157 br97dv132l4 foot hollow axis installed parallel axle-slash gear brake
Fv157 br97dv132l4 foot larvae axis installed parallel axes - slash gear brakes
Fa157r97dv132l4 sky axes installation of parallel axes - tilted gear deviators
Fv157r97dv132l4 installing parallel axes - slash gear reduction machines
Faf157r97dv132l4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dv132l4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157r97dv132l4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz157r97dv132l4 is a parallel axle for the b14 flannel axle-slasher
Ff157r97dv132l4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv132l4 foot hollow axle lock, parallel axle-slasher
Fh157r97dv132l4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157r97dv132l4 is the parallel axle of the b5 axle lock, a slasher
Fhz157r97dv132l4 is a parallel axle for the b14 axle lock, a slasher

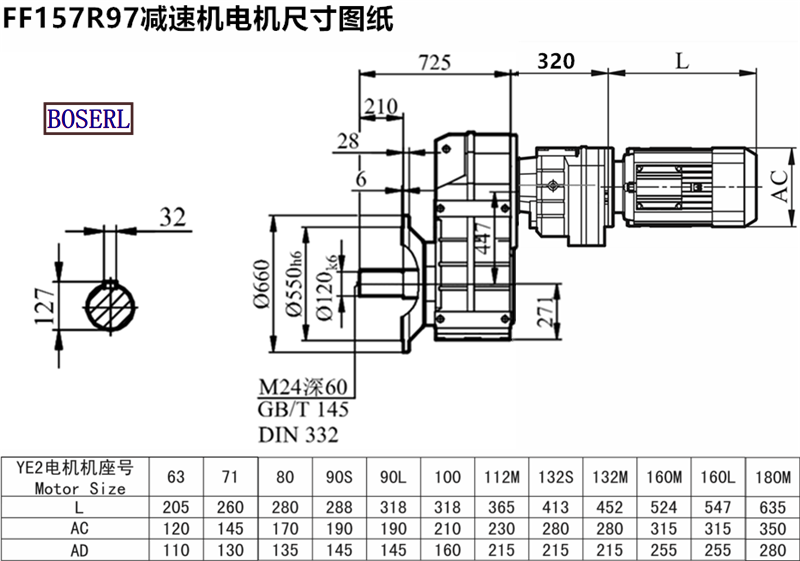

Ff157r97dv132l4 motor for reduction machinesInstall size drawings
Ff157r97dv132l4 motor for reduction machinesThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 3kw's power plant with a parallel axle gear decelerator 157r97dv132l4 ff157r97rn160s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF157R97DV132L4减速机样本 |
|
| FF157R97DV132L4减速机三维图纸 |
|
