FF157R97DV132ML4Detailed Information
Keyword: 7. 5 kw power with parallel axle gear reduction power _ ff157r97dv132ml4_ff157r97drrn180l4
FF157R97DV132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DV132ML4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| FF157R97DV132ML4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| FF157R97DV132ML4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| FF157R97DV132ML4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| FF157R97DV132ML4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| FF157R97DV132ML4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| FF157R97DV132ML4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| FF157R97DV132ML4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| FF157R97DV132ML4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
Ff157r97drn180l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157R97DRN180L4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FF157R97DRN180L4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Ff157r97dv132ml4 deviation motorType:
F157r97dv132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dv132ml4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv157 br97dv132ml4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dv132ml4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dv132ml4 sky axis installation of parallel axes - tilt-truck detachors
Faf157r97dv132ml4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dv132ml4 is the parallel axle of the b5-franco-axes-slash-slash-turn-turn-turp
Faz157r97dv132ml4 is a parallel axle of b14 installed in frank -- a slasher
Fvz157r97dv132ml4 is a parallel axle for b14 flannel axle-slasher
Ff157r97dv132ml4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv132ml 4 foot hollow axle locks with parallel axes-slash gears reduction machines
Fh157r97dv132ml4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157 r97dv132ml4 is the parallel axle of the b5 axle lock plate-slasher-slasher
Fhz157r97dv132ml4 is the parallel axle of the b14 axle lock-drive-slash-slasher

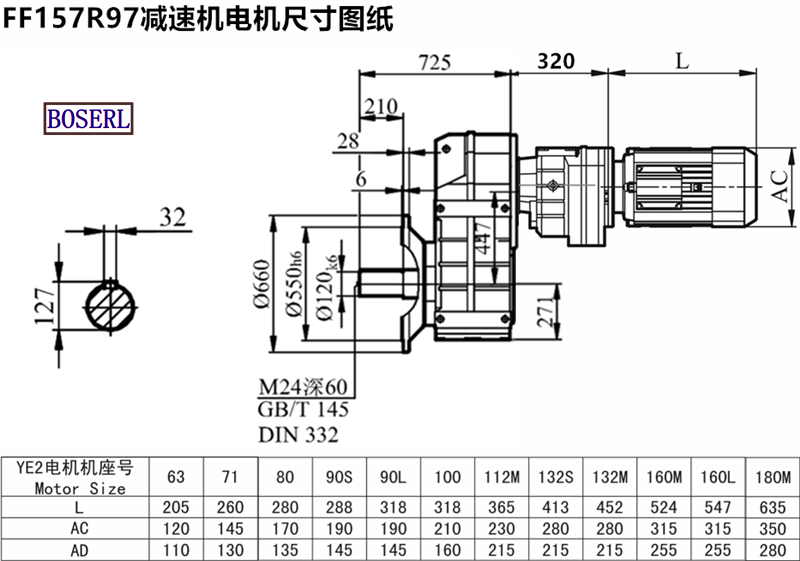

Ff157r97dv132ml4 deviation motorInstall size drawings
Ff157r97dv132ml4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 7. 5kw's power plant with a parallel axle gear-reducing power plant ff157r97dv132ml4ffff157r97drrn180l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF157R97DV132ML4减速机样本 |
|
| FF157R97DV132ML4减速机三维图纸 |
|
