FF157RF97-Y1.1KWDetailed Information
Keyword: 0. 25 kw power with a parallel axle gear reduction power _ ff157rf97-y1. 1kw_ff157rf97-y80m4
FF157RF97-Y1.1KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y1.1KW | 2780 | 1.1KW | 0.51r/min | 17900N.m | 1,071kg | 100500N | 1.00 |
| FF157RF97-Y1.1KW | 2427 | 1.1KW | 0.58r/min | 15800N.m | 1,071kg | 106100N | 1.15 |
| FF157RF97-Y1.1KW | 2185 | 1.1KW | 0.65r/min | 14100N.m | 1,071kg | 110000N | 1.25 |
| FF157RF97-Y1.1KW | 1944 | 1.1KW | 0.73r/min | 12500N.m | 1,071kg | 113100N | 1.45 |
| FF157RF97-Y1.1KW | 1674 | 1.1KW | 0.85r/min | 11100N.m | 1,071kg | 115600N | 1.60 |
| FF157RF97-Y1.1KW | 1308 | 1.1KW | 1.10r/min | 8610N.m | 1,071kg | 119100N | 2.10 |
| FF157RF97-Y1.1KW | 1169 | 1.1KW | 1.20r/min | 7630N.m | 1,071kg | 120000N | 2.40 |
| FF157RF97-Y1.1KW | 953 | 1.1KW | 1.50r/min | 6100N.m | 1,071kg | 120000N | 3.00 |
| FF157RF97-Y1.1KW | 845 | 1.1KW | 1.70r/min | 5330N.m | 1,071kg | 120000N | 3.40 |
| FF157RF97-Y1.1KW | 446 | 1.1KW | 3.20r/min | 2810N.m | 1,071kg | 120000N | 6.40 |
| FF157RF97-Y1.1KW | 302 | 1.1KW | 4.70r/min | 1900 N.m | 1,071kg | 120000N | 9.40 |
Ff157rf97-y80m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y80M4 | 2780 | 0.75KW | 0.52r/min | 11700N.m | 1,067kg | 114600N | 1.55 |
| FF157RF97-Y80M4 | 1674 | 0.75KW | 0.86r/min | 7310N.m | 1,067kg | 120000N | 2.50 |
| FF157RF97-Y80M4 | 2427 | 0.75KW | 0.59r/min | 10300N.m | 1,067kg | 116800N | 1.75 |
| FF157RF97-Y80M4 | 1308 | 0.75KW | 1.10r/min | 5640N.m | 1,067kg | 120000N | 3.20 |
| FF157RF97-Y80M4 | 1169 | 0.75KW | 1.20r/min | 4980N.m | 1,067kg | 120000N | 3.60 |
Ff157rf97-y1. 1kw power driveType:
F157rf97-y1. 1kw bottom foot installation parallel axes - tilt gearGearboc
Fa157bf97-y1. 1kw foot hollow axis installed parallel axle-slasher
Fv157brf97-y1. 1kw bottom foot flow axis installation of parallel axes - tilted gear deviators
Fa157rf97-y1. 1kw sky axis installation of parallel axes - tilt gear deviators
Fv157rf97-y1. 1kw sky axis installation of parallel axes - tilt-truck deviators
Faf157rf97-y1. 1kw is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf157rf97-y1. 1kw is the parallel axle of b5 flannel axle-slasher
Faz157rf97-y1. 1kw is a parallel axle for b14-slash gear reduction
Fvz157rf97-y1. 1kw is the parallel axis of the b14 flannel axle-slasher
Ff157rf97-y1. 1kw is a parallel to the b5-slash gear reduction machine
Fh157brf97-y1. 1kw foot hollow axle locks, parallel axle-slasher
Fh157rf97-y1. 1kw is a parallel axle-slash-slasher for an empty axle lock
Fhf157rf97-y1. 1kw is a parallel axle-sweet gear-reducing machine installed on the b5 axle lockboard
Fhz157rf97-y1. 1kw is the parallel axle-slasher for b14 aerocentric lockboards - slasher

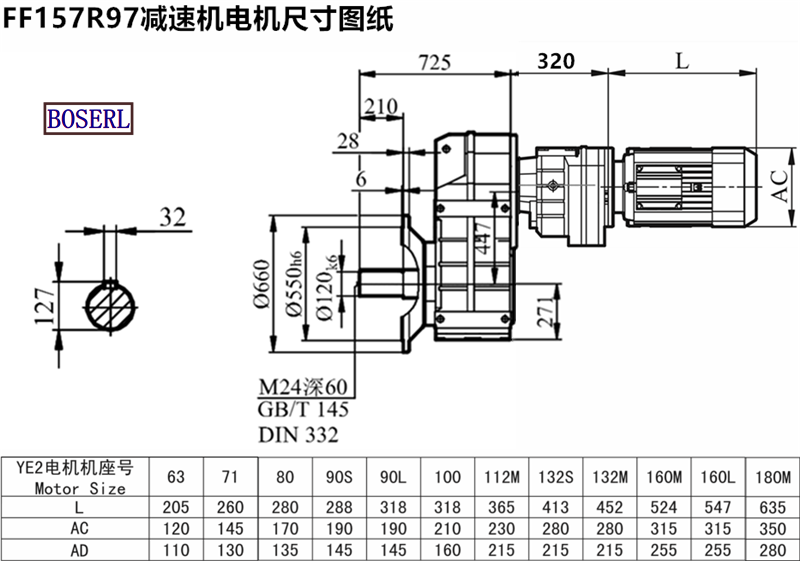

Ff157rf97-y1. 1kw power driveInstall size drawings
Ff157rf97-y1. 1kw power driveThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What's the parallel axle-turbation turbo for the 0. 25kw? Ff157rf97-y1. 1kw ff157rf97-y80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF157RF97Y1.1KW减速机样本 |
|
| FF157RF97Y1.1KW减速机三维图纸 |
|
