Ff37 motor speed-reducing machineDetailed Information
Keyword: ff37 emp _ff37y1. 1kw_ff37y1. 5kw_ff37 emp manufacturer_ff37 emp manufacturer
FF37Y1.1KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF37Y1.1KW | 19.70 | 1.1KW | 72.0rpm | 146N.m | 33Kg | 6470N | 2.80 |
| FF37Y1.1KW | 31.69 | 1.1KW | 45.0rpm | 230N.m | 33Kg | 3720N | 0.85 |
| FF37Y1.1KW | 28.09 | 1.1KW | 51.0rpm | 205N.m | 33Kg | 3970N | 0.95 |
| FF37Y1.1KW | 23.88 | 1.1KW | 59.0rpm | 177N.m | 33Kg | 3930N | 1.15 |
| FF37Y1.1KW | 20.57 | 1.1KW | 69.0rpm | 152N.m | 33Kg | 3870N | 1.30 |
| FF37Y1.1KW | 19.27 | 1.1KW | 74.0rpm | 143N.m | 33Kg | 3840N | 1.40 |
| FF37Y1.1KW | 17.03 | 1.1KW | 83.0rpm | 126N.m | 33Kg | 3770N | 1.60 |
| FF37Y1.1KW | 14.33 | 1.1KW | 99.0rpm | 106N.m | 33Kg | 3670N | 1.90 |
| FF37Y1.1KW | 12.87 | 1.1KW | 110rpm | 95N.m | 33Kg | 3600N | 2.10 |
| FF37Y1.1KW | 11.08 | 1.1KW | 128rpm | 82N.m | 33Kg | 3490N | 2.30 |
| FF37Y1.1KW | 10.42 | 1.1KW | 136rpm | 77N.m | 33Kg | 3450N | 2.40 |
| FF37Y1.1KW | 8.97 | 1.1KW | 158rpm | 66N.m | 33Kg | 3340N | 2.60 |
FF37Y1.5KWInduction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF37Y1.5KW | 20.57 | 1.5KW | 70.0rpm | 205N.m | 36Kg | 3410N | 0.95 |
| FF37Y1.5KW | 19.27 | 1.5KW | 74.0rpm | 193N.m | 36Kg | 3410N | 1.05 |
| FF37Y1.5KW | 17.03 | 1.5KW | 84.0rpm | 170N.m | 36Kg | 3390N | 1.15 |
| FF37Y1.5KW | 14.33 | 1.5KW | 100rpm | 144N.m | 36Kg | 3350N | 1.40 |
| FF37Y1.5KW | 12.87 | 1.5KW | 111rpm | 129N.m | 36Kg | 3310N | 1.55 |
| FF37Y1.5KW | 11.08 | 1.5KW | 129rpm | 111N.m | 36Kg | 3240N | 1.70 |
| FF37Y1.5KW | 10.42 | 1.5KW | 137rpm | 104N.m | 36Kg | 3210N | 1.75 |
| FF37Y1.5KW | 8.97 | 1.5KW | 159rpm | 90N.m | 36Kg | 3130N | 1.95 |
| FF37Y1.5KW | 8.01 | 1.5KW | 178rpm | 80N.m | 36Kg | 3070N | 2.10 |
Ff37 motorreducing machineType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

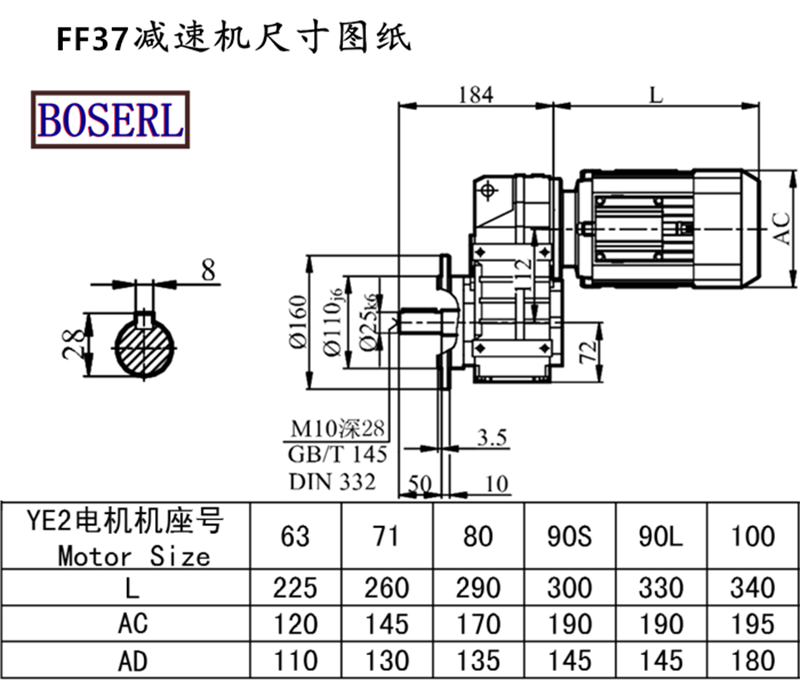

Ff37 motorreducing machineInstall size drawings
Ff37 motorreducing machineThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
