FF57R37DM63MS4Detailed Information

prevnext

FF57R37DM63MS4

TEL：Email:[email protected]

详细信息

Keywords: how much kw power can be with a parallel axle gear reductioner_ff57r37dm63ms4_ff57r37drrs71s4

FF57R37DM63MS4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF57R37DM63MS4	851	0.12KW	1.60r/min	610N.m	48kg	9100N	1.00
FF57R37DM63MS4	738	0.12KW	1.90r/min	520N.m	48kg	9750N	1.15
FF57R37DM63MS4	646	0.12KW	2.10r/min	455N.m	48kg	10200N	1.30
FF57R37DM63MS4	558	0.12KW	2.50r/min	385N.m	48kg	10600N	1.55
FF57R37DM63MS4	506	0.12KW	2.70r/min	345N.m	48kg	10900N	1.75
FF57R37DM63MS4	452	0.12KW	3.00r/min	295N.m	48kg	11100N	2.00
FF57R37DM63MS4	426	0.12KW	3.20r/min	310N.m	48kg	11100N	1.95
FF57R37DM63MS4	382	0.12KW	3.60r/min	270N.m	48kg	11300N	2.20
FF57R37DM63MS4	330	0.12KW	4.20r/min	230N.m	48kg	11500N	2.60
FF57R37DM63MS4	298	0.12KW	4.60r/min	210N.m	48kg	11500N	2.80
FF57R37DM63MS4	262	0.12KW	5.30r/min	185N.m	48kg	11500N	3.20

Fff57r37drrs71s4reducing motor parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF57R37DRS71S4	386	0.25KW	3.40r/min	620N.m	52.5kg	8830N	0.95
FF57R37DRS71S4	338	0.25KW	3.80r/min	540N.m	52.5kg	9640N	1.10
FF57R37DRS71S4	255	0.25KW	5.10r/min	405N.m	52.5kg	10500N	1.45
FF57R37DRS71S4	382	0.25KW	3.40r/min	635N.m	52.5kg	7390N	0.95
FF57R37DRS71S4	330	0.25KW	3.90r/min	550N.m	52.5kg	9570N	1.10
FF57R37DRS71S4	298	0.25KW	4.40r/min	495N.m	52.5kg	9950N	1.20
FF57R37DRS71S4	262	0.25KW	5.00r/min	435N.m	52.5kg	10300N	1.35
FF57R37DRS71S4	226	0.25KW	5.80r/min	370N.m	52.5kg	10700N	1.60
FF57R37DRS71S4	200	0.25KW	6.50r/min	320N.m	52.5kg	11000N	1.85
FF57R37DRS71S4	170	0.25KW	7.60r/min	275N.m	52.5kg	11300N	2.20

Ff57r37dm63ms4 deviation motorType:

F57r37dm63ms4 bottom foot installation parallel axes - tilt gearGearboc

Fa57br37dm63ms4 foot hollow axis installed parallel axle-slash gear-receiver

Fv57br37dm63ms4 bottom feet cascular axes installation of parallel axes - tilt gear deviators

Fa57r37dm63ms4 sky axes installation of parallel axes-slash gear deviators

Fv57r37dm63ms4 sky axis installation of parallel axes - tilt-truck-trinkler

Faf57r37dm63ms4 is a parallel axle-slash gear-reducing machine for b5 aerocentric axis

Fvf57r37dm63ms4 is a parallel axle-slash gear-reducing machine for the b5 flange cardiac axis

Faz57r37dm63ms4 is a parallel axle b14-slash gear reduction machine

Fvz57r37dm63ms4 is a parallel axle of b14 flannel cardiac axle-slasher

Ff57r37dm63ms4 is a parallel to the b5-slash gear reduction machine

Fh57br37dm63ms4 foot hollow axle locks to install parallel axes-slash gears reduction machines

Fh57r37dm63ms4 is a parallel axle-slash-slasher for the empty axle lock

Fhf57r37dm63ms4 is a parallel axle-slash-slasher for the b5 axle

Fhz57r37dm63ms4 is a parallel axle-slasher for b14 aerocentric lockboards

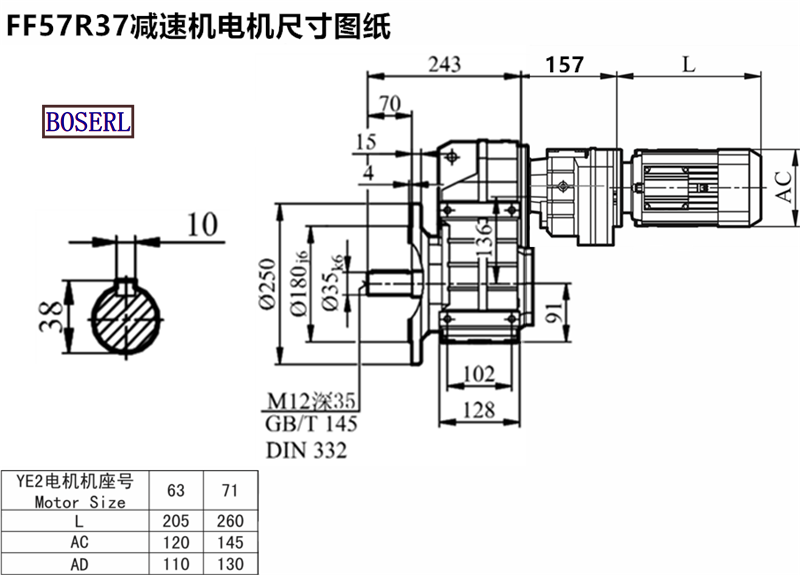

Ff57r37dm63ms4 deviation motorInstall size drawings

Ff57r37dm63ms4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: 110kw power power with parallel axle gear speed reduction ff57r37dm63ms4 ff57r37drrs71s4

上一条FF57R37DM71S4
下一条FF57R37DM71MS4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FF57R37DM63MS4减速机样本
FF57R37DM63MS4减速机三维图纸
