0. 12 kw power power with a parallel axle gear speed reduction power _ ff57r37dv71s4_boserl moving ff57r37drrn63l4 speed retarder manufacturer

FF57R37DV71S4Detailed Information

prevnext

FF57R37DV71S4

TEL：Email:[email protected]

详细信息

Keywords: 0. 12 kw power with parallel axle slash gear reduction power _ ff57r37dv71s4_ff57r37drrn63l4

FF57R37DV71S4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF57R37DV71S4	386	0.25KW	3.40r/min	620N.m	52.5kg	8830N	0.95
FF57R37DV71S4	338	0.25KW	3.80r/min	540N.m	52.5kg	9640N	1.10
FF57R37DV71S4	255	0.25KW	5.10r/min	405N.m	52.5kg	10500N	1.45
FF57R37DV71S4	382	0.25KW	3.40r/min	635N.m	52.5kg	7390N	0.95
FF57R37DV71S4	330	0.25KW	3.90r/min	550N.m	52.5kg	9570N	1.10
FF57R37DV71S4	298	0.25KW	4.40r/min	495N.m	52.5kg	9950N	1.20
FF57R37DV71S4	262	0.25KW	5.00r/min	435N.m	52.5kg	10300N	1.35
FF57R37DV71S4	226	0.25KW	5.80r/min	370N.m	52.5kg	10700N	1.60
FF57R37DV71S4	200	0.25KW	6.50r/min	320N.m	52.5kg	11000N	1.85
FF57R37DV71S4	170	0.25KW	7.60r/min	275N.m	52.5kg	11300N	2.20

Ff57r37drrn63l4reducing motor parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF57R37DRN63L4	558	0.18KW	2.40r/min	635N.m	48.5kg	7570N	0.95
FF57R37DRN63L4	506	0.18KW	2.60r/min	570N.m	48.5kg	9420N	1.05
FF57R37DRN63L4	452	0.18KW	2.90r/min	495N.m	48.5kg	9930N	1.20
FF57R37DRN63L4	386	0.18KW	3.40r/min	425N.m	48.5kg	10400N	1.40
FF57R37DRN63L4	338	0.18KW	3.90r/min	370N.m	48.5kg	10700N	1.60
FF57R37DRN63L4	426	0.18KW	3.10r/min	500N.m	48.5kg	9910N	1.20
FF57R37DRN63L4	382	0.18KW	3.50r/min	445N.m	48.5kg	10300N	1.35
FF57R37DRN63L4	330	0.18KW	4.00r/min	380N.m	48.5kg	10700N	1.55
FF57R37DRN63L4	298	0.18KW	4.40r/min	340N.m	48.5kg	10900N	1.75
FF57R37DRN63L4	262	0.18KW	5.00r/min	300N.m	48.5kg	11100N	2.00
FF57R37DRN63L4	226	0.18KW	5.80r/min	255N.m	48.5kg	11400N	2.30
FF57R37DRN63L4	200	0.18KW	6.60r/min	220N.m	48.5kg	11500N	2.70

Ff57r37dv71s4 deviation motorType:

F57r37dv71s4 bottom foot installation parallel axes - tilt gearGearboc

Fa57br37dv71s4 foot hollow axis installed parallel axle-slash gear brakes

Fv57br37dv71s4 bottom feet axis installation of parallel axes - tilt gear deviators

Fa57r37dv71s4 installation of parallel axes-slash gear reduction machines

Fv57r37dv71s4 installation of parallel axes-slash gear reduction machines

Faf57r37dv71s4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis

Fvf57r37dv71s4 is a parallel axle-slash gear-reducing machine for the b5-franco-air

Faz57r37dv71s4 is a parallel axle for b14f

Fvz57r37dv71s4 is a parallel axle for the b14 flannel axle-slasher

Fff57r37dv71s4 is a parallel to the b5fan installation of a side axle - a slasher

Fh57br37dv71s4 foot hollow axle locks, parallel axle-slasher

Fh57r37dv71s4 is a parallel axle-slash-slasher for an empty axle lock

Fhf57r37dv71s4 is the parallel axle of the b5 axle lock, the slasher

Fhz57r37dv71s4 is a parallel axle for the b14 axle lockboard, a slasher

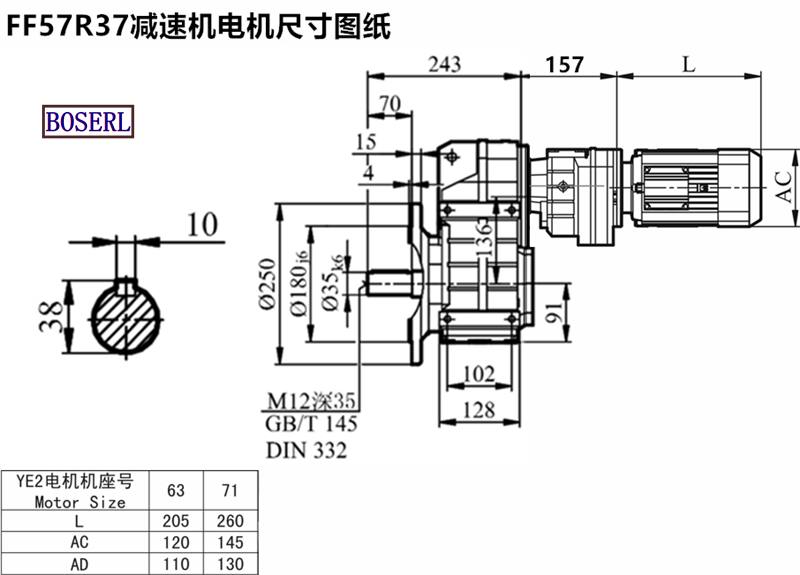

Ff57r37dv71s4 deviation motorInstall size drawings

Ff57r37dv71s4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: 0. 12 kw power power with a parallel axle gears for speed reduction. ff57r37dv71s4ffff57r37drrn63l4

tags： 0. 12 kw power power with a parallel axle gears for speed reduction. ff57r37dv71s4ffff57r37drrn63l4

上一条FF57R37DV71MS4
下一条F157R97DT132M4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FF57R37DV71S4减速机样本
FF57R37DV71S4减速机三维图纸
