Ff67 gear deviation box etherDetailed Information

Ff67 gear deviation box ether
prevnext

Ff67 gear deviation box ether

TEL：Email:[email protected]
  1. 详细信息

Keyword: ff67 gear-reducing box electric unit_ ff67y112m4_ff67y132m4_ff67 gear-retard box_ff67 gear-retard box_ff67 gear-retarder manufacturer_ff67 gear-retarder manufacturer

FF67Y112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF67Y112M427.414KW53.0rpm715N.m101Kg11100N1.15
FF67Y112M425.134KW58.0rpm655N.m101Kg11600N1.25
FF67Y112M422.054KW66.0rpm575N.m101Kg12000N1.40
FF67Y112M420.904KW70.0rpm545N.m101Kg12200N1.50
FF67Y112M418.294KW80.0rpm475N.m101Kg12500N1.70
FF67Y112M416.484KW89.0rpm430N.m101Kg12700N1.90
FF67Y112M414.464KW101rpm375N.m101Kg12900N2.20
FF67Y112M412.764KW114rpm330N.m101Kg13000N2.50
FF67Y112M411.314KW129rpm295N.m101Kg13000N2.80
FF67Y112M49.664KW151rpm250N.m101Kg13000N3.20
FF67Y112M49.084KW161rpm235N.m101Kg12900N2.20
FF67Y112M48.604KW170rpm225N.m101Kg12700N2.50
FF67Y112M47.534KW194rpm197N.m101Kg12300N3.10
FF67Y112M46.784KW215rpm178N.m101Kg12000N3.50
FF67Y112M45.954KW245rpm156N.m101Kg11700N3.90
FF67Y112M42784KW137rpm5.25N.m101Kg11300N4.30
FF67Y112M43144KW122rpm4.66N.m101Kg11000N4.60
FF67Y112M43674KW104rpm3.97N.m101Kg10500N4.80

FF67Y132M4Induction Motor 3Ph machine electrical parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF67Y132M422.055.5KW66.0rpm795N.m115Kg10500N1.05
FF67Y132M420.905.5KW70.0rpm750N.m115Kg10900N1.10
FF67Y132M418.295.5KW80.0rpm660N.m115Kg11500N1.25
FF67Y132M416.485.5KW88.0rpm590N.m115Kg11900N1.40
FF67Y132M414.465.5KW101rpm520N.m115Kg12300N1.55
FF67Y132M412.765.5KW114rpm460N.m115Kg12600N1.80
FF67Y132M411.315.5KW129rpm405N.m115Kg12800N2.00
FF67Y132M49.665.5KW151rpm345N.m115Kg12900N2.40
FF67Y132M49.085.5KW160rpm325N.m115Kg12400N1.60
FF67Y132M48.605.5KW169rpm310N.m115Kg12200N1.85
FF67Y132M47.535.5KW193rpm270N.m115Kg11900N2.20
FF67Y132M46.785.5KW214rpm240N.m115Kg11700N2.50
FF67Y132M45.955.5KW245rpm210N.m115Kg11300N2.80
FF67Y132M45.255.5KW277rpm190N.m115Kg11000N3.10
FF67Y132M44.665.5KW313rpm168N.m115Kg10700N3.30
FF67Y132M43.975.5KW366rpm144N.m115Kg10300N3.50

Ff67 gear deviation box etherType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

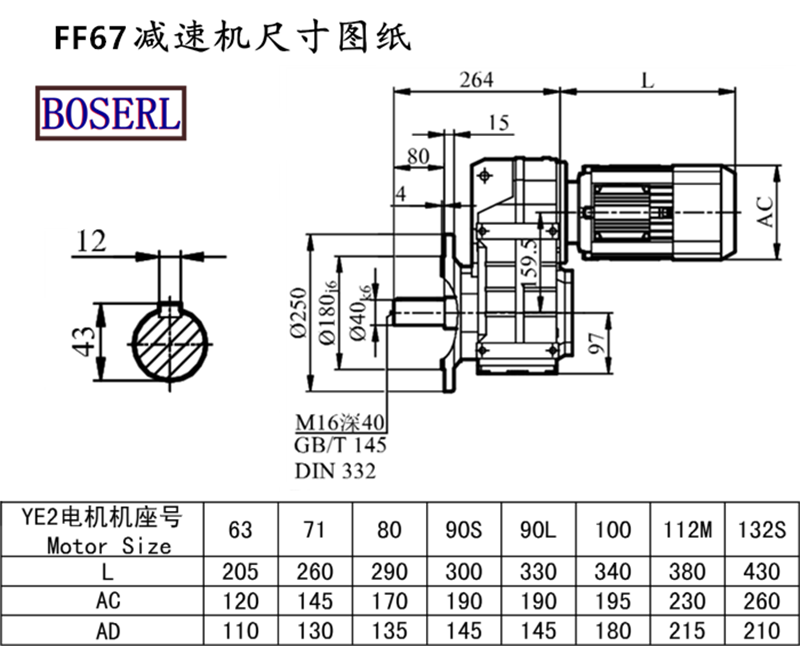

Ff67 gear deviation box etherInstall size drawings



Ff67 gear deviation box etherThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
