FF67R37DM71M4Detailed Information
Keywords: 1. 1 kw power sets with parallel axle reduction _ f67r37dm71m4_f67r37drs63m4
FF67R37DM71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DM71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FF67R37DM71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FF67R37DM71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FF67R37DM71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FF67R37DM71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Ff67r37drrs63m4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DRS63M4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FF67R37DRS63M4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FF67R37DRS63M4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FF67R37DRS63M4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FF67R37DRS63M4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FF67R37DRS63M4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FF67R37DRS63M4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FF67R37DRS63M4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FF67R37DRS63M4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FF67R37DRS63M4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Ff67r37dm71m4 deviation motorType:
F67r37dm71m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dm71m4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv67br37dm71m4 bottom feet cascular axes installation of parallel axes - tilted gear deviators
Fa67r37dm71m4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dm71m4 sky axis installation of parallel axes - tilt-steal gear deviators
Faf67r37dm71m4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dm71m4 is a parallel axle-slash gear-reducing machine for the b5 franberry cardiac axis
Faz67r37dm71m4 is a parallel axle for b14-slash gear reduction
Fvz67r37dm71m4 is a parallel axle for the b14 flannel axle-slasher
Fff67r37dm71m4 is a parallel to the b5-slash gear reduction machine
Fh67br37dm71m4 foot hollow axle locks, parallel axle-slasher
Fh67r37dm71m4 is a parallel axle-slash-slasher for the empty axle lock
Fhf67r37dm71m4 is a parallel axle-slasher for the b5 axle
Fhz67r37dm71m4 is the parallel axle of the b14 axle lock plate-slasher-slasher

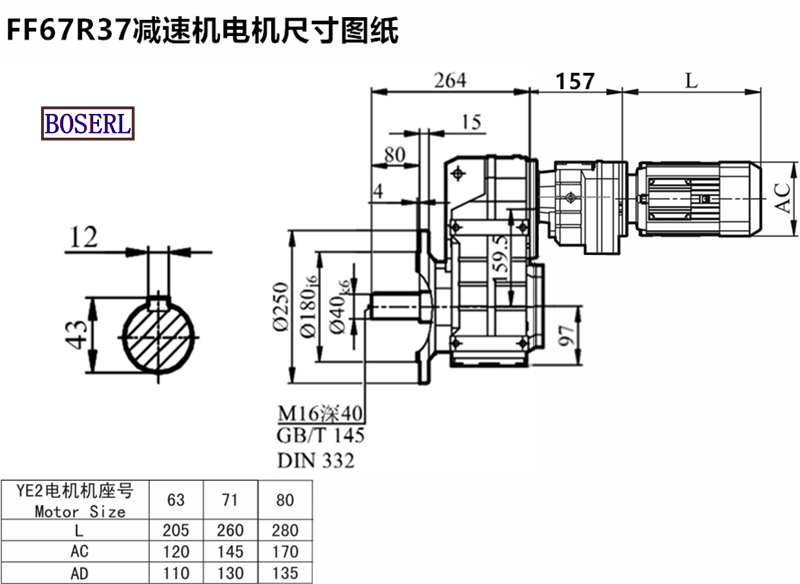

Ff67r37dm71m4 deviation motorInstall size drawings
Ff67r37dm71m4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
