FF67R37DM71S4Detailed Information
Keyword: 1. 1 kw power with parallel axle gear-reducing power _ ff67r37dm71s4_ff67r37drs80mk4
FF67R37DM71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DM71S4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FF67R37DM71S4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FF67R37DM71S4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FF67R37DM71S4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FF67R37DM71S4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FF67R37DM71S4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FF67R37DM71S4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FF67R37DM71S4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FF67R37DM71S4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FF67R37DM71S4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Fff67r37drs80mk4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DRS80MK4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DRS80MK4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DRS80MK4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DRS80MK4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Ff67r37dm71s4 deviation motorType:
F67r37dm71s4 bottom foot installation of parallel axes - tiltsGearboc
Fa67br37dm71s4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dm71s4 bottom feet cascular axes installation of parallel axes - tilted gear retrenchors
Fa67r37dm71s4 sky axes installation of parallel axes - tilted gear deviators
Fv67r37dm71s4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dm71s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dm71s4 is the parallel axle of the b5-franco-axe-slash-slash-steal-steal-steal-steal-steal
Faz67r37dm71s4 is a parallel axle for b14 flannels - a slasher
Fvz67r37dm71s4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dm71s4 is a parallel axle for b5-slash gear brakes
Fh67br37dm71s4 foot hollow axle locks, parallel axle-slasher
Fh67r37dm71s4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock
Fhf67r37dm71s4 is a parallel axle-slasher for the b5 axle
Fhz67r37dm71s4 is the b14 flannel axle lock to install parallel axle-slasher

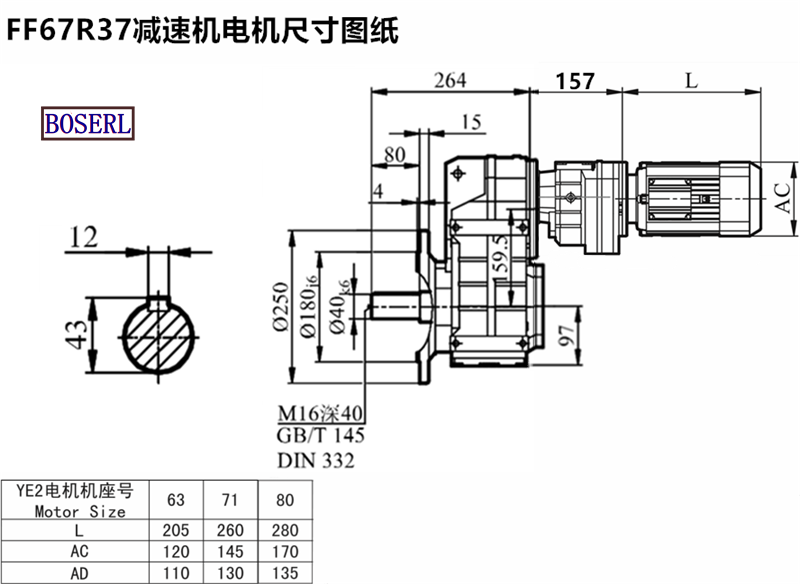

Ff67r37dm71s4 deviation motorInstall size drawings
Ff67r37dm71s4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
