FF67R37DT63L4Detailed Information
Keyword: how large a 11kw power can be with a parallel axle gear decelerator _ ff67r37dt63l4_ff67r37dre80n4
FF67R37DT63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DT63L4 | 858 | 0.18KW | 1.50r/min | 940N.m | 69.5kg | 8660N | 0.85 |
| FF67R37DT63L4 | 755 | 0.18KW | 1.80r/min | 820N.m | 69.5kg | 10200N | 1.00 |
| FF67R37DT63L4 | 641 | 0.18KW | 2.10r/min | 700N.m | 69.5kg | 11200N | 1.15 |
| FF67R37DT63L4 | 572 | 0.18KW | 2.30r/min | 645N.m | 69.5kg | 11600N | 1.25 |
| FF67R37DT63L4 | 509 | 0.18KW | 2.60r/min | 555N.m | 69.5kg | 12100N | 1.45 |
| FF67R37DT63L4 | 437 | 0.18KW | 3.00r/min | 480N.m | 69.5kg | 12500N | 1.70 |
| FF67R37DT63L4 | 384 | 0.18KW | 3.40r/min | 430N.m | 69.5kg | 12700N | 1.90 |
| FF67R37DT63L4 | 500 | 0.18KW | 2.60r/min | 575N.m | 69.5kg | 12000N | 1.40 |
| FF67R37DT63L4 | 454 | 0.18KW | 2.90r/min | 525N.m | 69.5kg | 12300N | 1.55 |
| FF67R37DT63L4 | 392 | 0.18KW | 3.40r/min | 450N.m | 69.5kg | 12600N | 1.80 |
| FF67R37DT63L4 | 333 | 0.18KW | 4.00r/min | 380N.m | 69.5kg | 12900N | 2.20 |
| FF67R37DT63L4 | 297 | 0.18KW | 4.40r/min | 335N.m | 69.5kg | 13000N | 2.40 |
| FF67R37DT63L4 | 261 | 0.18KW | 5.10r/min | 295N.m | 69.5kg | 13000N | 2.80 |
| FF67R37DT63L4 | 238 | 0.18KW | 5.60r/min | 260N.m | 69.5kg | 13000N | 3.10 |
| FF67R37DT63L4 | 200 | 0.18KW | 6.60r/min | 215N.m | 69.5kg | 13000N | 3.70 |
FF67R37DRE80N4Induction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DRE80N4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DRE80N4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DRE80N4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DRE80N4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Ff67r37dt63l4 reduction motor Type:
F67r37dt63l4 bottom foot installation parallel axes - tilt gearsGearboc
Fa67br37dt63l4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dt63l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dt63l4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dt63l4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dt63l4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dt63l4 is a parallel axle for b5 francocardia-slash gear-reducing machine
Faz67r37dt63l4 is a parallel axle for b14f
Fvz67r37dt63l4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dt63l4 is a parallel to the b5-slash gear reduction machine
Fh67br37dt63l4 foot hollow axle locks, parallel axle-slasher
Fh67r37dt63l4 is a parallel axle for an empty axle lock
Fhf67r37dt63l4 is the parallel axle-slasher for the b5 axle lock
Fhz67r37dt63l4 is a parallel axle for the b14 axle lock-drive

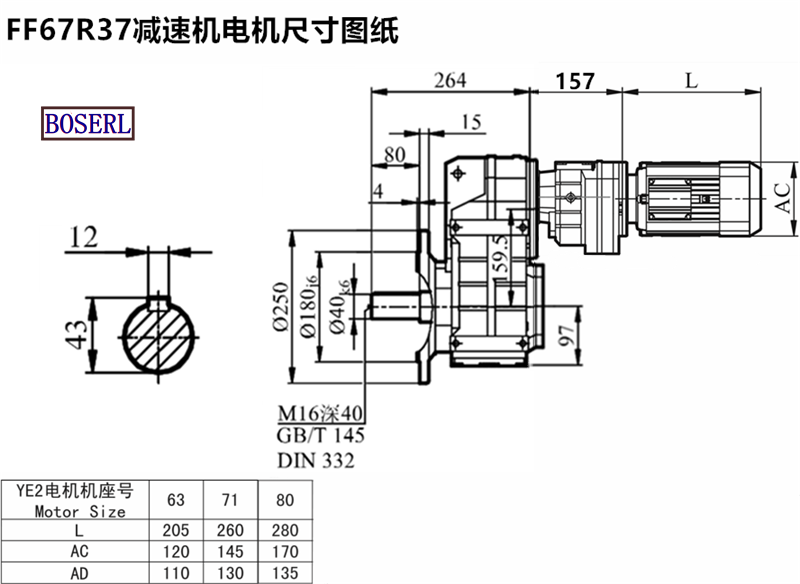

Ff67r37dt63l4 reduction motor Install size drawings
Ff67r37dt63l4 reduction motor The manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
