FF67R37DT80MK4Detailed Information
Keywords: how large a 3kw electric power can be with a parallel axle gear-reducing box_ ff67r37dt80mk4_ff67r37dre63l4
FF67R37DT80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DT80MK4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DT80MK4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DT80MK4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DT80MK4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Ff67r37dre63l4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DRE63L4 | 858 | 0.18KW | 1.50r/min | 940N.m | 69.5kg | 8660N | 0.85 |
| FF67R37DRE63L4 | 755 | 0.18KW | 1.80r/min | 820N.m | 69.5kg | 10200N | 1.00 |
| FF67R37DRE63L4 | 641 | 0.18KW | 2.10r/min | 700N.m | 69.5kg | 11200N | 1.15 |
| FF67R37DRE63L4 | 572 | 0.18KW | 2.30r/min | 645N.m | 69.5kg | 11600N | 1.25 |
| FF67R37DRE63L4 | 509 | 0.18KW | 2.60r/min | 555N.m | 69.5kg | 12100N | 1.45 |
| FF67R37DRE63L4 | 437 | 0.18KW | 3.00r/min | 480N.m | 69.5kg | 12500N | 1.70 |
| FF67R37DRE63L4 | 384 | 0.18KW | 3.40r/min | 430N.m | 69.5kg | 12700N | 1.90 |
| FF67R37DRE63L4 | 500 | 0.18KW | 2.60r/min | 575N.m | 69.5kg | 12000N | 1.40 |
| FF67R37DRE63L4 | 454 | 0.18KW | 2.90r/min | 525N.m | 69.5kg | 12300N | 1.55 |
| FF67R37DRE63L4 | 392 | 0.18KW | 3.40r/min | 450N.m | 69.5kg | 12600N | 1.80 |
| FF67R37DRE63L4 | 333 | 0.18KW | 4.00r/min | 380N.m | 69.5kg | 12900N | 2.20 |
| FF67R37DRE63L4 | 297 | 0.18KW | 4.40r/min | 335N.m | 69.5kg | 13000N | 2.40 |
| FF67R37DRE63L4 | 261 | 0.18KW | 5.10r/min | 295N.m | 69.5kg | 13000N | 2.80 |
| FF67R37DRE63L4 | 238 | 0.18KW | 5.60r/min | 260N.m | 69.5kg | 13000N | 3.10 |
| FF67R37DRE63L4 | 200 | 0.18KW | 6.60r/min | 215N.m | 69.5kg | 13000N | 3.70 |
Ff67r37dt80mk4 deviation motorType:
F67r37dt80mk4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dt80mk 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv67br37dt80mk4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dt80mk4 sky axis installation of parallel axes - tilt gear deviators
Fv67r37dt80mk4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dt80mk4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dt80mk4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz67r37dt80mk4 is a parallel axle for b14fan
Fvz67r37dt80mk4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dt80mk4 is a parallel to the b5 installation of a side axle-slasher
Fh67br37dt80mk 4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh67r37dt80mk4 is a parallel axle for an empty axle lock
Fhf67r37dt80mk4 is a parallel axle for the b5 axle lock-drive
Fhz67r37dt80mk4 is a parallel axle for the b14 axle lock, a slasher

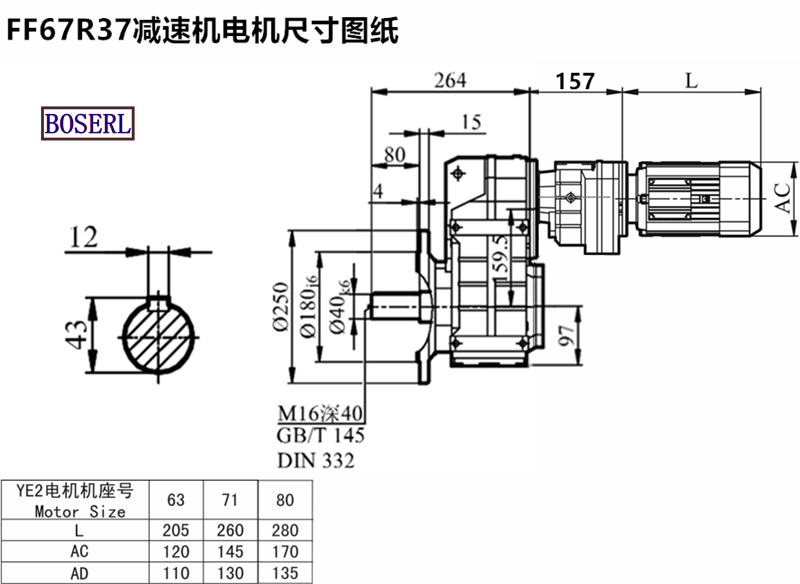

Ff67r37dt80mk4 deviation motorInstall size drawings
Ff67r37dt80mk4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
