FF67R37DVE63L4Detailed Information
Keywords: 1. 1 kw power with parallel axle slash gear reduction box_ff67r37dve63l4_ff67r37dr80n4
FF67R37DVE63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DVE63L4 | 858 | 0.18KW | 1.50r/min | 940N.m | 69.5kg | 8660N | 0.85 |
| FF67R37DVE63L4 | 755 | 0.18KW | 1.80r/min | 820N.m | 69.5kg | 10200N | 1.00 |
| FF67R37DVE63L4 | 641 | 0.18KW | 2.10r/min | 700N.m | 69.5kg | 11200N | 1.15 |
| FF67R37DVE63L4 | 572 | 0.18KW | 2.30r/min | 645N.m | 69.5kg | 11600N | 1.25 |
| FF67R37DVE63L4 | 509 | 0.18KW | 2.60r/min | 555N.m | 69.5kg | 12100N | 1.45 |
| FF67R37DVE63L4 | 437 | 0.18KW | 3.00r/min | 480N.m | 69.5kg | 12500N | 1.70 |
| FF67R37DVE63L4 | 384 | 0.18KW | 3.40r/min | 430N.m | 69.5kg | 12700N | 1.90 |
| FF67R37DVE63L4 | 500 | 0.18KW | 2.60r/min | 575N.m | 69.5kg | 12000N | 1.40 |
| FF67R37DVE63L4 | 454 | 0.18KW | 2.90r/min | 525N.m | 69.5kg | 12300N | 1.55 |
| FF67R37DVE63L4 | 392 | 0.18KW | 3.40r/min | 450N.m | 69.5kg | 12600N | 1.80 |
| FF67R37DVE63L4 | 333 | 0.18KW | 4.00r/min | 380N.m | 69.5kg | 12900N | 2.20 |
| FF67R37DVE63L4 | 297 | 0.18KW | 4.40r/min | 335N.m | 69.5kg | 13000N | 2.40 |
| FF67R37DVE63L4 | 261 | 0.18KW | 5.10r/min | 295N.m | 69.5kg | 13000N | 2.80 |
| FF67R37DVE63L4 | 238 | 0.18KW | 5.60r/min | 260N.m | 69.5kg | 13000N | 3.10 |
| FF67R37DVE63L4 | 200 | 0.18KW | 6.60r/min | 215N.m | 69.5kg | 13000N | 3.70 |
Ff67r37dr80n4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DR80N4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DR80N4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DR80N4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DR80N4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Ff67r37dve63l4 deviation motorType:
F67r37dve63l4 bottom foot installation parallel axes - tied gearsGearboc
Fa67br37dve63l4 foot hollow axis installed parallel axle-slash gear brake
Fv67br37dve63l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dve63l4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dve63l4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dve63l4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dve63l4 is a parallel axle-slash gear-reducing machine for the b5-franco-air
Faz67r37dve63l4 is a parallel to the b14fan installation of a side axle-slasher
Fvz67r37dve63l4 is the parallel axis of the b14 flannel axle-slasher
Fff67r37dve63l4 is a parallel to the b5-slash gear reduction machine
Fh67br37dve63l4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh67r37dve63l4 is a parallel axle-slash-slasher for the empty axle lock
Fhf67r37dve63l4 is the parallel axle of the b5 axle lock, which is a slasher
Fhz67r37dve63l4 is a parallel axle-slasher for the b14 axle lock

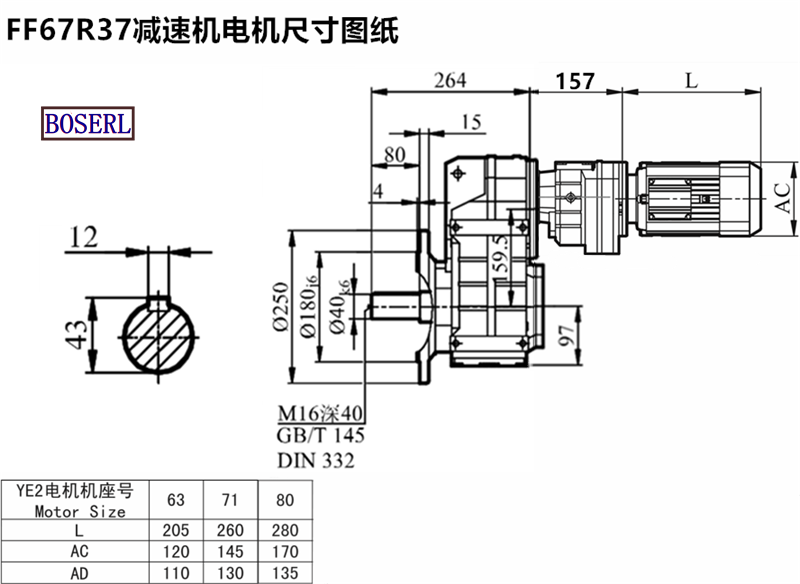

Ff67r37dve63l4 deviation motorInstall size drawings
Ff67r37dve63l4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
