FF67R37DVE71D4Detailed Information
Keyword: 0. 55 kw power and parallel axle slash gear reduction box_ff67r37dve71d4_ff67r37dr63ms4
FF67R37DVE71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DVE71D4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FF67R37DVE71D4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FF67R37DVE71D4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FF67R37DVE71D4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FF67R37DVE71D4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Ff67r37dr63ms4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DR63MS4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FF67R37DR63MS4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FF67R37DR63MS4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FF67R37DR63MS4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FF67R37DR63MS4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FF67R37DR63MS4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FF67R37DR63MS4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FF67R37DR63MS4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FF67R37DR63MS4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FF67R37DR63MS4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Ff67r37dve71d4 deviation motionType:
F67r37dve71d4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dve71d 4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dve71d4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dve71d4 sky axis installation of parallel axes-slash gear reduction machines
Fv67r37dve71d4 cascade axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dve71d4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dve71d4 is a parallel axle for b5 flannel cortex
Faz67r37dve71d4 is a parallel axle for b14f
Fvz67r37dve71d4 is a parallel axle for b14 flannel axle-slasher
Ff67r37dve71d4 is a parallel to the b5-slash gear brake
Fh67br37dve71d4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh67r37dve71d4 is a parallel axle-slash-slash gear-reducing machine
Fhf67r37dve71d4 is a parallel axle for the b5 axle lock-drive-slasher
Fhz67r37dve71d4 is a parallel axle-slasher for b14 aerocentric locks

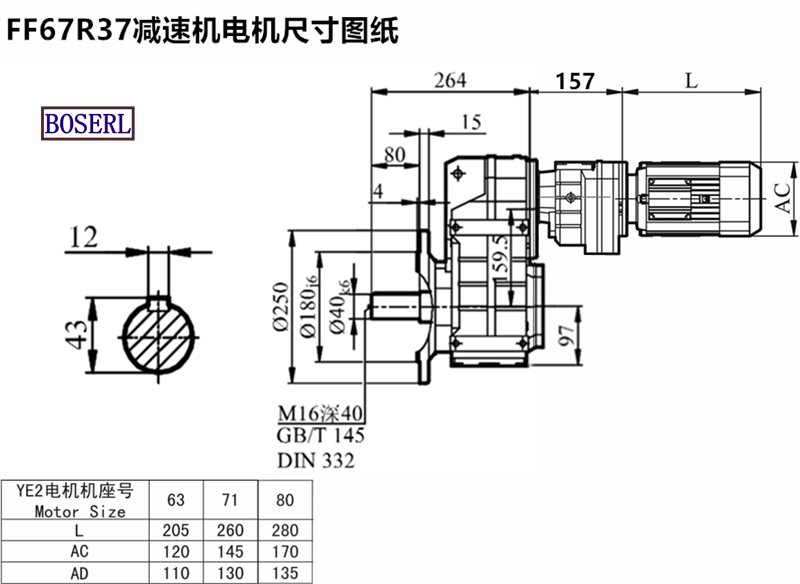

Ff67r37dve71d4 deviation motionInstall size drawings
Ff67r37dve71d4 deviation motionThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
