FF67R37DVE80S4Detailed Information
Keywords: 2. 2 kw power and parallel axle tilt gear reduction box_ff67r37dve80s4_ff67r37dr71ms4
FF67R37DVE80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DVE80S4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DVE80S4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DVE80S4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DVE80S4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Ff67r37dr71ms4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF67R37DR71MS4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FF67R37DR71MS4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FF67R37DR71MS4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FF67R37DR71MS4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FF67R37DR71MS4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FF67R37DR71MS4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FF67R37DR71MS4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FF67R37DR71MS4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FF67R37DR71MS4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FF67R37DR71MS4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Ff67r37dve80s4 deviation motionType:
F67r37dve80s4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dve80s4 foot hollow axis installed parallel axle-slasher
Fv67br37dve80s4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dve80s4 sky axis installation parallel axle-slash gear reduction machine
Fv67r37dve80s4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dve80s4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf67r37dve80s4 is a parallel axle for b5 flannel cortex
Faz67r37dve80s4 is a parallel to the b14fan installation of a side axle-slasher
Fvz67r37dve80s4 is a parallel axle for b14 flannel cortex
Ff67r37dve80s4 is a parallel to the b5-slash gear reduction machine
Fh67br37dve80s4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh67r37dve80s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf67r37dve80s4 is a parallel axle for the b5 axle lock, a slasher
Fhz67r37dve80s4 is a parallel axle for the b14 axle lock, a slasher

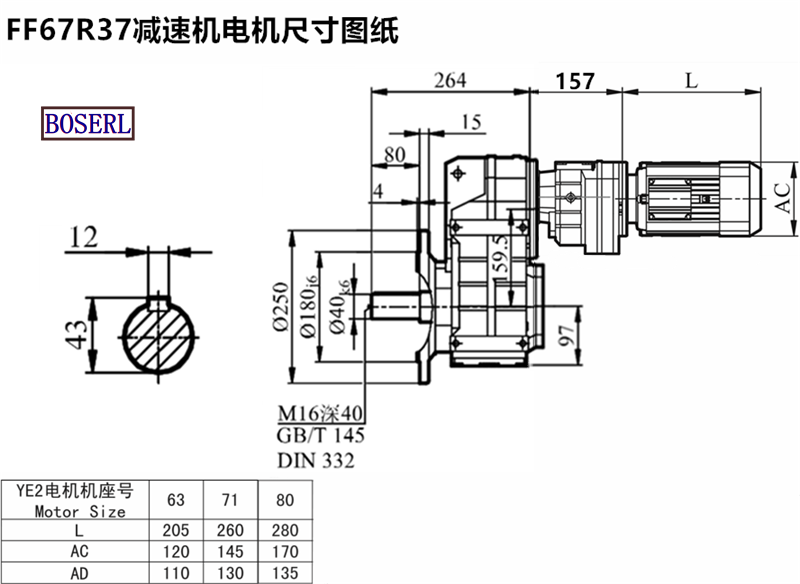

Ff67r37dve80s4 deviation motionInstall size drawings
Ff67r37dve80s4 deviation motionThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
