FF87DRN80MK4Detailed Information
Keywords: Output RT 328.5r/minreducing motor _FF87DRN80MK4_FF87DRN80N4_ 328.5rpm _ one minutereducing motor _ 328.5r/min/minute-reducing machine _ 328.5rpm
FF87DRN80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF87DRN80MK4 | 270.68 | 0.75KW | 5.30rpm | 1350N.m | 166kg | 28200N | 2.20 |
| FF87DRN80MK4 | 255.37 | 0.75KW | 5.60rpm | 1270N.m | 166kg | 28400N | 2.40 |
| FF87DRN80MK4 | 228.93 | 0.75KW | 6.30rpm | 1140N.m | 166kg | 28700N | 2.60 |
Fff87drn80n4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF87DRN80N4 | 270.68 | 0.75KW | 5.30rpm | 1350N.m | 166kg | 28200N | 2.20 |
| FF87DRN80N4 | 255.37 | 0.75KW | 5.60rpm | 1270N.m | 166kg | 28400N | 2.40 |
| FF87DRN80N4 | 228.93 | 0.75KW | 6.30rpm | 1140N.m | 166kg | 28700N | 2.60 |
Ff87drn80mk4 gear-reducing motorType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

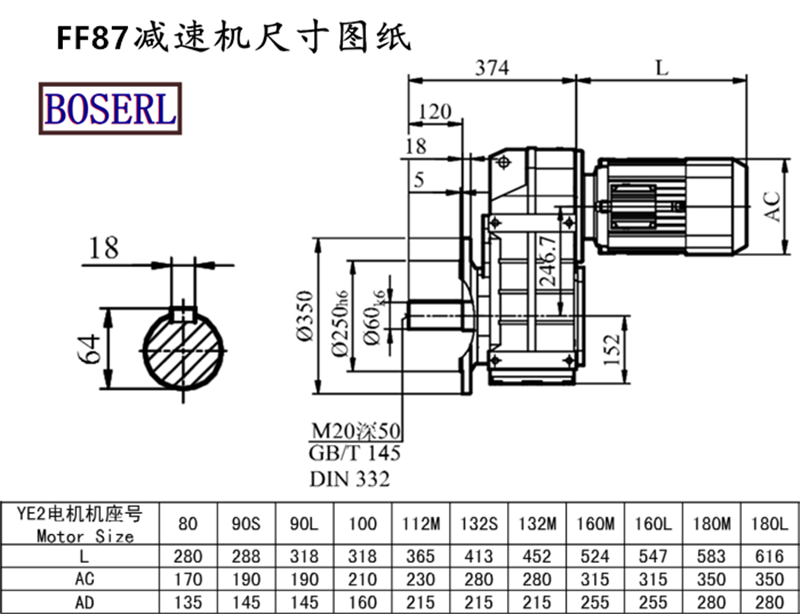

Ff87drn80mk4 gear-reducing motorInstall size drawings
Ff87drn80mk4 gear-reducing motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 328.5r/min speed-reducing motor 887DRN80MK4FFFF87DRN80N43328.5rpm 328.5rm 328.5r 328.5r/min/minute speed-reducing machine
- 上一条FF87DRE80K4
- 下一条FF87DRS80K4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF87DRN80MK4减速机样本 |
|
| FF87DRN80MK4减速机三维图纸 |
|
