FF87R57DT90L4Detailed Information
Keyword: 37kw electric power to what extent parallel axle slasher _ ff87r57dt90l4_ff87r57dre80k4
FF87R57DT90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF87R57DT90L4 | 300 | 1.5KW | 4.80r/min | 2760N.m | 191kg | 23900N | 1.10 |
| FF87R57DT90L4 | 249 | 1.5KW | 5.70r/min | 2290N.m | 191kg | 25500N | 1.30 |
Ff87r57dre80k4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF87R57DRE80K4 | 887 | 0.55KW | 1.60r/min | 3050N.m | 183kg | 17400N | 1.00 |
| FF87R57DRE80K4 | 780 | 0.55KW | 1.80r/min | 2670N.m | 183kg | 24200N | 1.10 |
| FF87R57DRE80K4 | 674 | 0.55KW | 2.00r/min | 2290N.m | 183kg | 25500N | 1.30 |
| FF87R57DRE80K4 | 609 | 0.55KW | 2.30r/min | 2080N.m | 183kg | 26200N | 1.45 |
| FF87R57DRE80K4 | 515 | 0.55KW | 2.70r/min | 1760N.m | 183kg | 27100N | 1.70 |
| FF87R57DRE80K4 | 452 | 0.55KW | 3.00r/min | 1550N.m | 183kg | 27700N | 1.95 |
| FF87R57DRE80K4 | 345 | 0.55KW | 4.00r/min | 1160N.m | 183kg | 28600N | 2.60 |
Ff87r57dt90l4 deviation motorType:
F87r57dt90l4 bottom foot installation parallel axes - tilt gearGearboc
Fa87br57dt90l4 foot hollow axis installed parallel axle-slash gear brake
Fv87br57dt90l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa87r57dt90l4 sky axes installation of parallel axes - tilt gear deviators
Fv87r57dt90l4 cascade axis installed parallel axle-slash gear reduction machine
Faf87r57dt90l4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf87r57dt90l4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz87r57dt90l4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz87r57dt90l4 is a parallel axle for the b14 flannel axle-slasher
Ff87r57dt90l4 is a parallel axle for b5-slash gear brakes
Fh87br57dt90l4 foot hollow axle locks with parallel axles - slash gear reduction machines
Fh87r57dt90l4 is a parallel axle for an empty axle lock
Fhf87r57dt90l4 is the parallel axle of the b5 axle lock plate-slasher
Fhz87r57dt90l4 is a parallel axle for the b14 axle lock-drive

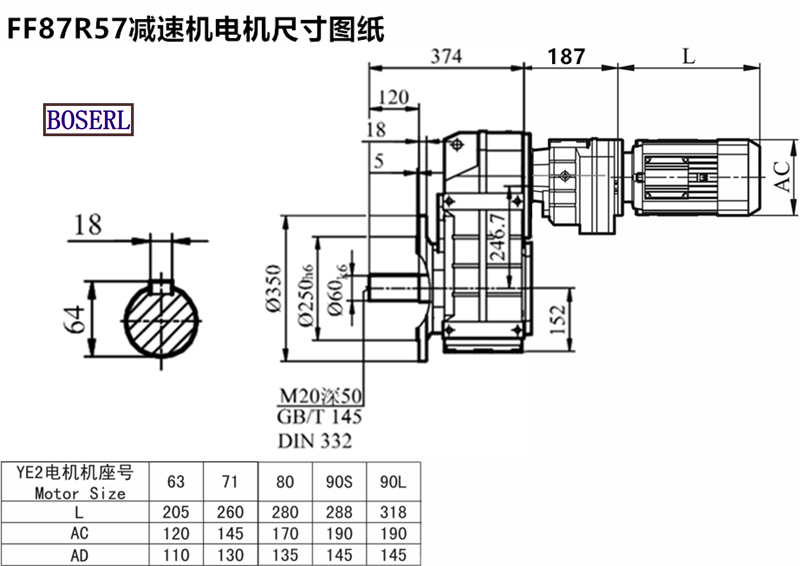

Ff87r57dt90l4 deviation motorInstall size drawings
Ff87r57dt90l4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
