Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > Induction Motor 3Ph

FF97DV160S4Detailed Information

FF97DV160S4
prevnext

FF97DV160S4

TEL：Email:[email protected]
  1. 详细信息

Keywords: snail stacking and gear gaping in conjunction withreducing motor _ff97dv160s4_ff97drn160s4

FF97DV160S4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF97DV160S465.4711KW23.0rpm4660N.m375kg26900N0.90
FF97DV160S458.0611KW25.0rpm4130N.m375kg27100N1.05
FF97DV160S452.4911KW28.0rpm3730N.m375kg27100N1.15
FF97DV160S444.4911KW33.0rpm3160N.m375kg26900N1.35
FF97DV160S438.8611KW38.0rpm2760N.m375kg26700N1.55
FF97DV160S432.5011KW45.0rpm2310N.m375kg26200N1.85
FF97DV160S433.9111KW44.0rpm2410N.m375kg26300N1.80
FF97DV160S430.3911KW49.0rpm2160N.m375kg25900N2.00
FF97DV160S427.4411KW54.0rpm1950N.m375kg25500N2.20
FF97DV160S424.9211KW59.0rpm1770N.m375kg25100N2.40
FF97DV160S422.1111KW67.0rpm1570N.m375kg24600N2.70

Ff97drn160s4 deviation machine parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF97DRN160S465.4711KW23.0rpm4660N.m375kg26900N0.90
FF97DRN160S458.0611KW25.0rpm4130N.m375kg27100N1.05
FF97DRN160S452.4911KW28.0rpm3730N.m375kg27100N1.15
FF97DRN160S444.4911KW33.0rpm3160N.m375kg26900N1.35
FF97DRN160S438.8611KW38.0rpm2760N.m375kg26700N1.55
FF97DRN160S432.5011KW45.0rpm2310N.m375kg26200N1.85
FF97DRN160S433.9111KW44.0rpm2410N.m375kg26300N1.80
FF97DRN160S430.3911KW49.0rpm2160N.m375kg25900N2.00
FF97DRN160S427.4411KW54.0rpm1950N.m375kg25500N2.20
FF97DRN160S424.9211KW59.0rpm1770N.m375kg25100N2.40
FF97DRN160S422.1111KW67.0rpm1570N.m375kg24600N2.70

Ff97dv160s4reducing motorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

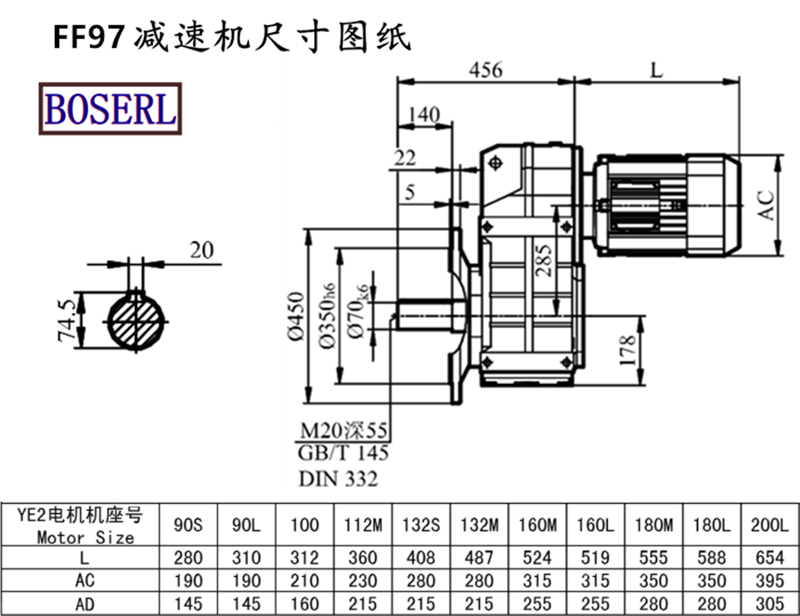

Ff97dv160s4reducing motorInstall size drawings



Ff97dv160s4reducing motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:  The snails and gear gap of the snails and gears combined with the speed-reducing motor ff97dv160s4 ff97drn160s4
tags： The snails and gear gap of the snails and gears combined with the speed-reducing motor ff97dv160s4 ff97drn160s4
