Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > Induction Motor 3Ph

FF97DV200L4Detailed Information

FF97DV200L4
prevnext

FF97DV200L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: crusher with three-phased reduction machine _ff97dv200l4_ff97drn200l4

FF97DV200L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF97DV200L422.1130KW67.0rpm4290N.m513kg15100N1.00
FF97DV200L420.0730KW74.0rpm3890N.m513kg15500N1.10
FF97DV200L417.2530KW86.0rpm3350N.m513kg16000N1.30
FF97DV200L415.0630KW98.0rpm2920N.m513kg16300N1.45
FF97DV200L412.7730KW116rpm2480N.m513kg16400N1.75
FF97DV200L411.1630KW132rpm2160N.m513kg16400N1.90
FF97DV200L49.0630KW163rpm1760N.m513kg15400N1.35
FF97DV200L48.2230KW179rpm1590N.m513kg15300N1.50
FF97DV200L47.0730KW209rpm1370N.m513kg15100N1.70
FF97DV200L46.1730KW239rpm1190N.m513kg14900N1.90
FF97DV200L45.2330KW282rpm1010N.m513kg14600N2.10
FF97DV200L44.5730KW322rpm880N.m513kg14300N2.30

Fff97drn200l4reducing motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FF97DRN200L422.1130KW67.0rpm4290N.m513kg15100N1.00
FF97DRN200L420.0730KW74.0rpm3890N.m513kg15500N1.10
FF97DRN200L417.2530KW86.0rpm3350N.m513kg16000N1.30
FF97DRN200L415.0630KW98.0rpm2920N.m513kg16300N1.45
FF97DRN200L412.7730KW116rpm2480N.m513kg16400N1.75
FF97DRN200L411.1630KW132rpm2160N.m513kg16400N1.90
FF97DRN200L49.0630KW163rpm1760N.m513kg15400N1.35
FF97DRN200L48.2230KW179rpm1590N.m513kg15300N1.50
FF97DRN200L47.0730KW209rpm1370N.m513kg15100N1.70
FF97DRN200L46.1730KW239rpm1190N.m513kg14900N1.90
FF97DRN200L45.2330KW282rpm1010N.m513kg14600N2.10
FF97DRN200L44.5730KW322rpm880N.m513kg14300N2.30

Ff97dv200l4 reduction motor Type:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

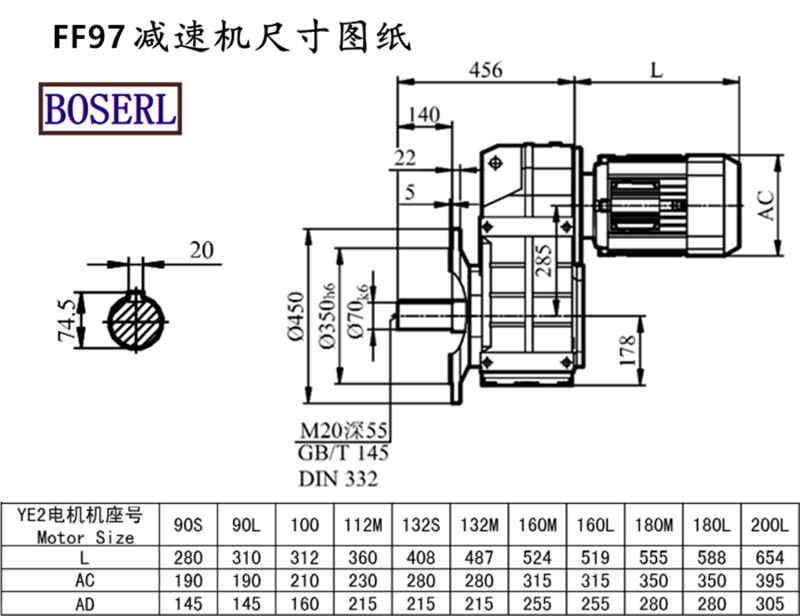

Ff97dv200l4 reduction motor Install size drawings



Ff97dv200l4 reduction motor The manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:  Crusher with a three-stage speed reduction machine ff97dv200l4 ff97drn200l4
tags： Crusher with a three-stage speed reduction machine ff97dv200l4 ff97drn200l4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FF97DV200L4减速机样本 Click to download
FF97DV200L4减速机三维图纸 Click to download
