Bevel Gear Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Helical bewel gearbox > Motor-gear reducer

K127DRN225M4Detailed Information

K127DRN225M4
prevnext

K127DRN225M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: output turn 93 laps/minute reduction motor _k127drn225m4_k127dv225m4_output turn 93 laps/minute reduction motor

K127DRN225M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
K127DRN225M447.8245KW31rpm13800N.m720Kg52800N0.95
K127DRN225M440.1945KW37rpm11600N.m720Kg53900N1.1
K127DRN225M436.2545KW41rpm10500N.m720Kg54200N1.25
K127DRN225M431.3745KW47rpm9100N.m720Kg54400N1.45
K127DRN225M427.6845KW53rpm8030N.m720Kg54200N1.6
K127DRN225M423.9145KW62rpm6930N.m720Kg53800N1.85
K127DRN225M421.1545KW70rpm6130N.m720Kg53200N2.1
K127DRN225M417.77
45KW83rpm5150N.m720Kg52200N2.5
K127DRN225M414.3545KW103rpm4160N.m720Kg50600N2.9
K127DRN225M412.7945KW116rpm3710N.m720Kg48300N2.3
K127DRN225M410.7445KW138rpm3110N.m720Kg47000N2.6
K127DRN225M48.6845KW171rpm2510N.m720Kg45200N2.9

K127dv225m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
K127DV225M447.8245KW31rpm13800N.m720Kg52800N0.95
K127DV225M440.1945KW37rpm11600N.m720Kg53900N1.1
K127DV225M436.2545KW41rpm10500N.m720Kg54200N1.25
K127DV225M431.3745KW47rpm9100N.m720Kg54400N1.45
K127DV225M427.6845KW53rpm8030N.m720Kg54200N1.6
K127DV225M423.9145KW62rpm6930N.m720Kg53800N1.85
K127DV225M421.1545KW70rpm6130N.m720Kg53200N2.1
K127DV225M417.77
45KW83rpm5150N.m720Kg52200N2.5
K127DV225M414.3545KW103rpm4160N.m720Kg50600N2.9
K127DV225M412.7945KW116rpm3710N.m720Kg48300N2.3
K127DV225M410.7445KW138rpm3110N.m720Kg47000N2.6
K127DV225M48.6845KW171rpm2510N.m720Kg45200N2.9

K127DRN225M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

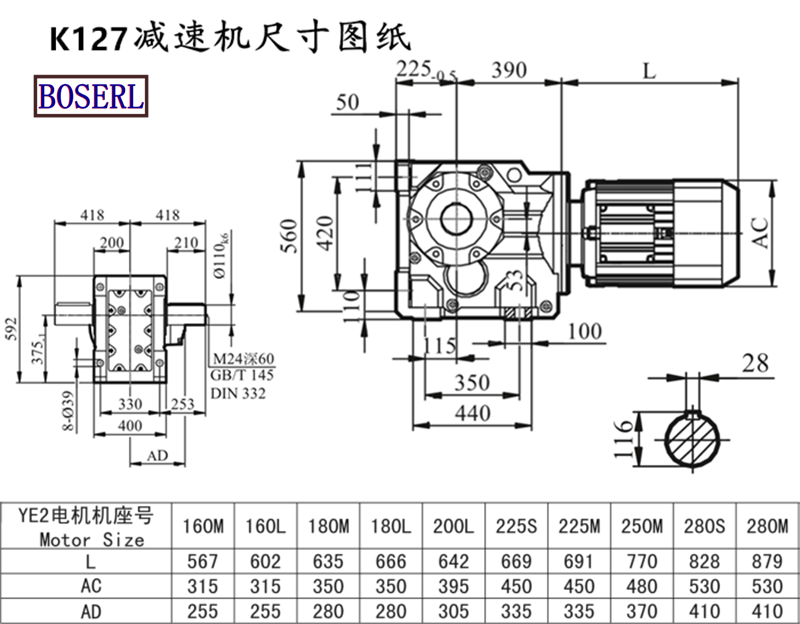

K127DRN225M4Induction Motor 3Ph motors installed size drawings:


K127DRN225M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW


标签:  93 laps/minute speed-reducing machine  k127drn225m4kk127dv225m4   93 laps per minute for speed-reducing machine   93 laps per minute for gear-reducing tank motors   93 laps per minute for speed-reducing machine
tags： 93 laps/minute speed-reducing machine    k127drn225m4kk127dv225m4    93 laps per minute for speed-reducing machine    93 laps per minute for gear-reducing tank motors    93 laps per minute for speed-reducing machine

Documentation related to this product / Related DownLoad

Product Document Name Click to download
K127DRN225M4减速机样本 Click to download
K127DRN225M4三维图纸 Click to download
