K127R77DT71MS4Detailed Information
Keywords: how the 75kw power is fitted with an umbrella gear-reducing box_k127r77dt71ms4_k127r77dre63ms4
K127R77DT71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K127R77DT71MS4 | 9819 | 0.25KW | 0.13r/min | 15100N.m | 426kg | 75600N | 0.85 |
| K127R77DT71MS4 | 8443 | 0.25KW | 0.15r/min | 13000N.m | 426kg | 79200N | 1.00 |
| K127R77DT71MS4 | 7482 | 0.25KW | 0.17r/min | 11500N.m | 426kg | 79900N | 1.10 |
| K127R77DT71MS4 | 6565 | 0.25KW | 0.20r/min | 10100N.m | 426kg | 80600N | 1.30 |
| K127R77DT71MS4 | 5804 | 0.25KW | 0.22r/min | 8750N.m | 426kg | 81200N | 1.50 |
| K127R77DT71MS4 | 5027 | 0.25KW | 0.26r/min | 7690N.m | 426kg | 81600N | 1.70 |
| K127R77DT71MS4 | 4423 | 0.25KW | 0.29r/min | 6660N.m | 426kg | 81900N | 1.95 |
| K127R77DT71MS4 | 3889 | 0.25KW | 0.33r/min | 5820N.m | 426kg | 82100N | 2.20 |
| K127R77DT71MS4 | 3311 | 0.25KW | 0.39r/min | 4870N.m | 426kg | 82300N | 2.70 |
K127r77dre63ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K127R77DRE63MS4 | 17550 | 0.12KW | 0.08r/min | 10800N.m | 421.5kg | 80300N | 1.20 |
| K127R77DRE63MS4 | 16006 | 0.12KW | 0.09r/min | 9890N.m | 421.5kg | 80700N | 1.30 |
| K127R77DRE63MS4 | 14975 | 0.12KW | 0.09r/min | 9260N.m | 421.5kg | 81000N | 1 .40 |
| K127R77DRE63MS4 | 12440 | 0.12KW | 0.11r/min | 7690N.m | 421.5kg | 81600N | 1.70 |
| K127R77DRE63MS4 | 10915 | 0.12KW | 0.13r/min | 6750N.m | 421.5kg | 81900N | 1.95 |
| K127R77DRE63MS4 | 9819 | 0.12KW | 0.14r/min | 6070N.m | 421.5kg | 82000N | 2.10 |
| K127R77DRE63MS4 | 8443 | 0.12KW | 0.16r/min | 5180N.m | 421.5kg | 82300N | 2.50 |
| K127R77DRE63MS4 | 7482 | 0.12KW | 0.18r/min | 4620N.m | 421.5kg | 82400N | 2.80 |
K127R77DT71MS4Speeding machine type:
K127r77dt71ms4 bottom foot with tilt gear - umbrella gear-reducing power
Ka127br77dt71ms4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv127br77dt71ms4 foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh127 br77dt71ms4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127r77dt71ms4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dt71ms4b5 french aerocentric axis installed with tilt gears - umbrella gear reduction power
Kvf127r77dt71ms4b5franco-axis installation of tilt gears - umbrella gear reduction power
Khf127r77dt71ms4b5franic axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r77dt71ms4 tilt gears - umbrella gear deviation power
The kv127r77dt71ms4 cardiac axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh127r77dt71ms4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt127r77dt71ms4 hollow axle - umbrella gear reduction power
Kaz127r77dt71ms4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dt71ms4b14 installation of tilt gear - umbrella gear deviation power
Khz127r77dt71ms4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

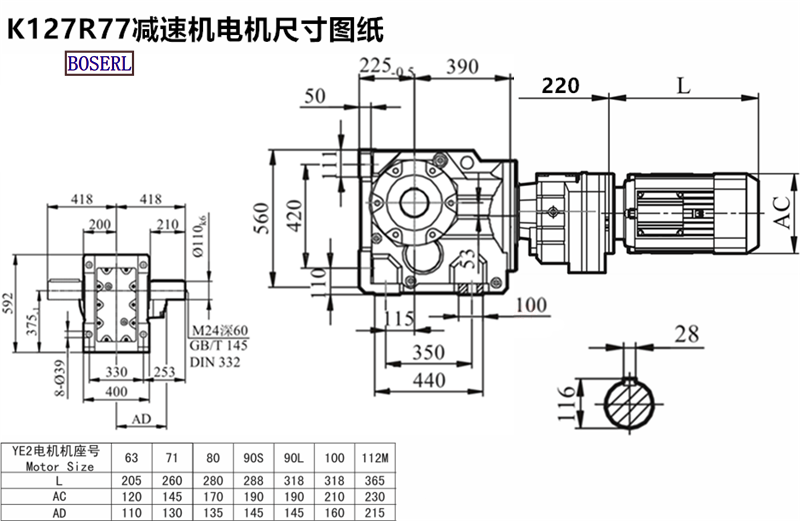

K127R77DT71MS4Induction Motor 3Ph motors installed size drawings
K127r77dt71ms4 power-reducing plantMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
