K157R107DM160MC4Detailed Information
Keywords: how 22kw electrics fit axle axle brakes_k157r107dm160mc4_k157r107drrs180l4
K157R107DM160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K157R107DM160MC4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| K157R107DM160MC4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| K157R107DM160MC4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| K157R107DM160MC4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| K157R107DM160MC4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| K157R107DM160MC4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
K157R107DRS180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K157R107DRS180L4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| K157R107DRS180L4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| K157R107DRS180L4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
K157R107DM160MC4Speeding machine type:
K157r107dm160mc4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka157br107dm160mc4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br107dm160mc4 bottom feet flow axis installation of tilt gear - umbrella gear deviation engine
Kh157 br107dm160mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Frf157r107dm160mc4b5 installation of tilt gear - umbrella gear reduction power
Khf157r107dm160mc4b5 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka157r107dm160mc4 tilt gears - umbrella gear reduction power
The kv157r107dm160mc4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r107dm160mc4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dm160mc4 hollow axle - umbrella gear reduction power
Kaz157r107dm160mc4b14 installation of tilt gears - umbrella gear-reducing power
Kvz157r107dm160mc4b14 francoons installed slash gears - umbrella gear reduction power
Khz157r107dm160mc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

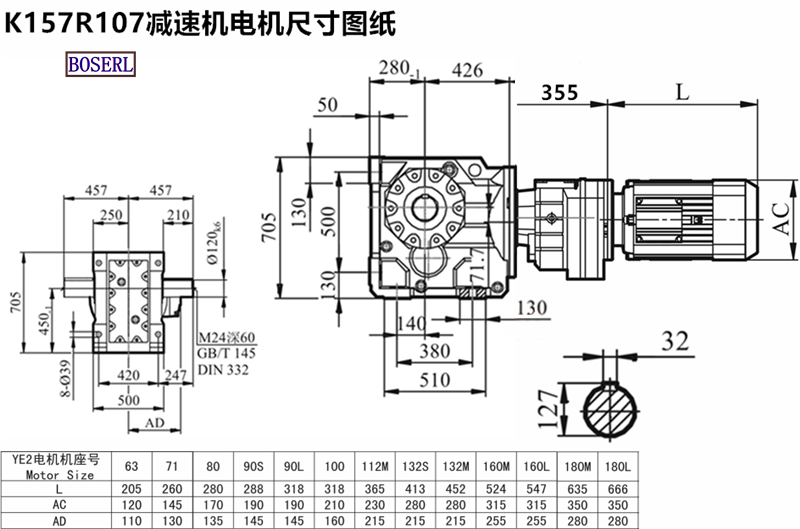

K157R107DM160MC4Induction Motor 3Ph motors installed size drawings
K157R107DM160MC4We need to make an appointment three days in advanceMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
