K157R97DT80M4Detailed Information
Keyword: how 132kw power is equipped with a screwdriver gear-retarder_k157r97dt80m4_k157r97dre112m4
K157R97DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K157R97DT80M4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| K157R97DT80M4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| K157R97DT80M4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| K157R97DT80M4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
K157r97dre112m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K157R97DRE112M4 | 854 | 4KW | 1.70r/min | 20300N.m | 757kg | 110900N | 0.90 |
| K157R97DRE112M4 | 756 | 4KW | 1.90r/min | 17800N.m | 757kg | 112300N | 1.00 |
| K157R97DRE112M4 | 567 | 4KW | 2.60r/min | 13400N.m | 757kg | 114200N | 1.35 |
| K157R97DRE112M4 | 504 | 4KW | 2.90r/min | 11900N.m | 757kg | 114700N | 1.50 |
| K157R97DRE112M4 | 434 | 4KW | 3.40r/min | 10200N.m | 757kg | 115200N | 1.75 |
K157R97DT80M4Speeding machine type:
K157r97dt80m4 bottom foot is fitted with tilt gears - an umbrella gear reduction power
Ka157br97dt80m4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br97dt80m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br97dt80m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r97dt80m4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dt80m4b5 installation of tilt gears - umbrella gear reduction power
Frf157r97dt80m4b5 installation of tilt gear - umbrella gear reduction power
Khf157r97dt80m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt80m4 hollow axle tilt gear - umbrella gear reduction power
Kv157r97dt80m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r97dt80m4 sky axes locked tilt gears - umbrella gear deviation engine
Kt157r97dt80m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz157r97dt80m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dt80m4b14 installation of tilt gear - umbrella gear deviation power
Khz157r97dt80m4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

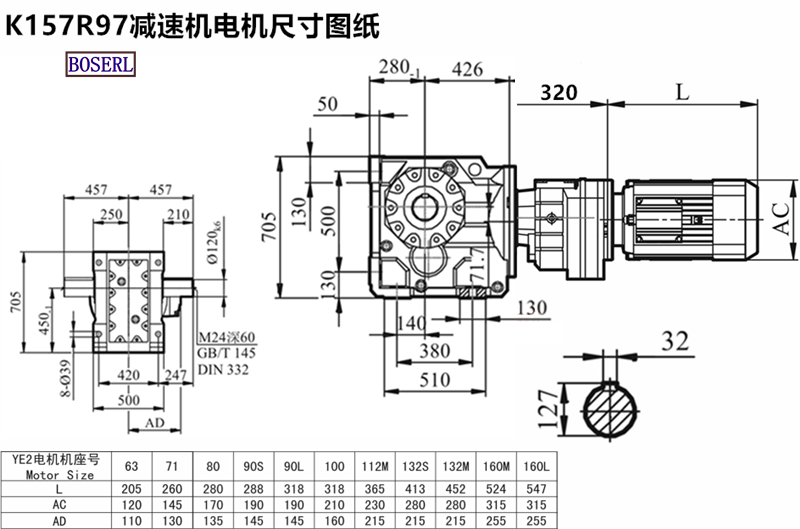

K157R97DT80M4Induction Motor 3Ph motors installed size drawings
K157r97dt80m4 deviation electric power plant, three days' appointmentMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 132kw power is fitted with a screwdriver gear reduction engine k157r97dt80m4 k157r97dre112m4
- 上一条K157R97DT90M4
- 下一条K157R97DR160M4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| K157R97DT80M4减速机样本 |
|
| K157R97DT80M4减速机三维图纸 |
|
