K187DRE280M4Detailed Information
Keyword: output turn 302. 5 laps/minute reduction motor _k187 dre 280m4_k187dm 280m4_ output turn 302. 5 laps of reduction motor _ 302. 5 laps of gear reduction motor _ one minute of 302. 5 laps of gear reduction motor _ one minute of 302. 5 laps of reduction machine _ one minute of 302. 5 laps of power reduction
K187DRE280M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K187DRE280M4 | 102.16 | 90KW | 14rpm | 59300N.m | 2200Kg | 151300N | 0.85 |
| K187DRE280M4 | 88 | 90KW | 17rpm | 51100N.m | 2200Kg | 153400N | 1 |
| K187DRE280M4 | 73.96 | 90KW | 20rpm | 42900N.m | 2200Kg | 154200N | 1.15 |
| K187DRE280M4 | 64.04 | 90KW | 23rpm | 37100N.m | 2200Kg | 153800N | 1.35 |
| K187DRE280M4 | 53.36 | 90KW | 28rpm | 30900N.m | 2200Kg | 152200N | 1.6 |
| K187DRE280M4 | 45.5 | 90KW | 33rpm | 26400N.m | 2200Kg | 149900N | 1.9 |
| K187DRE280M4 | 42.51 | 90KW | 35rpm | 24600N.m | 2200Kg | 148700N | 2 |
| K187DRE280M4 | 38.57 | 90KW | 38rpm | 22300N.m | 2200Kg | 146900N | 2.2 |
K187dm280m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K187DM280M4 | 102.16 | 90KW | 14rpm | 59300N.m | 2200Kg | 151300N | 0.85 |
| K187DM280M4 | 88 | 90KW | 17rpm | 51100N.m | 2200Kg | 153400N | 1 |
| K187DM280M4 | 73.96 | 90KW | 20rpm | 42900N.m | 2200Kg | 154200N | 1.15 |
| K187DM280M4 | 64.04 | 90KW | 23rpm | 37100N.m | 2200Kg | 153800N | 1.35 |
| K187DM280M4 | 53.36 | 90KW | 28rpm | 30900N.m | 2200Kg | 152200N | 1.6 |
| K187DM280M4 | 45.5 | 90KW | 33rpm | 26400N.m | 2200Kg | 149900N | 1.9 |
| K187DM280M4 | 42.51 | 90KW | 35rpm | 24600N.m | 2200Kg | 148700N | 2 |
| K187DM280M4 | 38.57 | 90KW | 38rpm | 22300N.m | 2200Kg | 146900N | 2.2 |
K187dre280m4 reduction motor type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

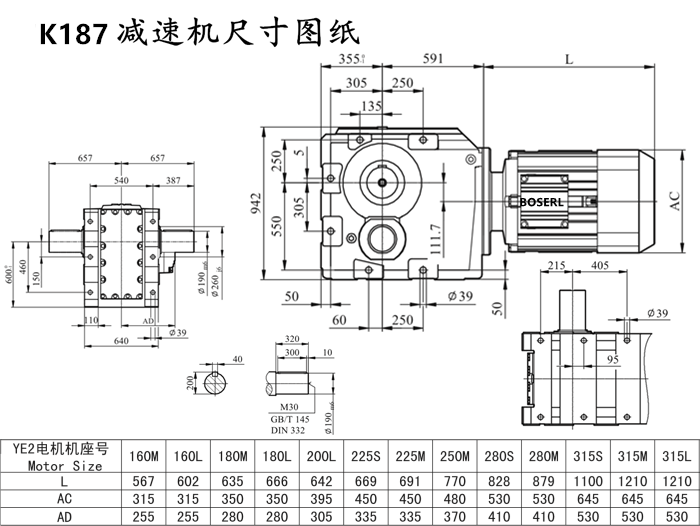

K187DRE280M4Induction Motor 3Ph power-driven installation size drawings:
K187DRE280M4Power-reducing plant display: three days in advance
Motor-gear reducerPresentation of application cases:
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 302. 5 laps/minutes of speed-reducing motor k187dre280m4kk187dm280m4 of 302. 5 laps of speed-reducing motor 302. 5 laps of gear-reducing motor 302. 5 laps of speed-reducing machine 302. 5 laps of power-reducing machine
- 上一条K187DRN315K4
- 下一条K187DRN280M4
