K57RF37-Y0.25KWDetailed Information
Keyword: 0. 25 kw power with an umbrella gear-retarder _ k57rf37-y0. 25kw_k57rf37-y71m4
K57RF37-Y0.25KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K57RF37-Y0.25KW | 421 | 0.25KW | 3.10r/min | 665N.m | 45.5kg | 4200N | 0.90 |
| K57RF37-Y0.25KW | 362 | 0.25KW | 3.60r/min | 590N.m | 45.5kg | 7690N | 1.00 |
| K57RF37-Y0.25KW | 319 | 0.25KW | 4.10r/min | 520N.m | 45.5kg | 8260N | 1.15 |
| K57RF37-Y0.25KW | 280 | 0.25KW | 4.60r/min | 440N.m | 45.5kg | 8680N | 1.35 |
| K57RF37-Y0.25KW | 246 | 0.25KW | 5.30r/min | 390N.m | 45.5kg | 8920N | 1.55 |
| K57RF37-Y0.25KW | 215 | 0.25KW | 6.00r/min | 345N.m | 45.5kg | 9110N | 1.75 |
| K57RF37-Y0.25KW | 192 | 0.25KW | 6.80r/min | 305N.m | 45.5kg | 9260N | 1.95 |
| K57RF37-Y0.25KW | 166 | 0.25KW | 7.80r/min | 265N.m | 45.5kg | 9410N | 2.30 |
| K57RF37-Y0.25KW | 145 | 0.25KW | 9.00r/min | 230N.m | 45.5kg | 9530N | 2.60 |
| K57RF37-Y0.25KW | 129 | 0.25KW | 10.0r/min | 210N.m | 45.5kg | 9600N | 2.80 |
| K57RF37-Y0.25KW | 111 | 0.25KW | 12.0r/min | 178N.m | 45.5kg | 9700N | 3.40 |
| K57RF37-Y0.25KW | 97 | 0.25KW | 13.0r/min | 156N.m | 45.5kg | 9770N | 3.80 |
K57RF37-Y71M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K57RF37-Y71M4 | 280 | 0.37KW | 4.90r/min | 630N.m | 46kg | 7350N | 0.95 |
| K57RF37-Y71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 46kg | 7980N | 1.10 |
| K57RF37-Y71M4 | 215 | 0.37KW | 6.40r/min | 490N.m | 46kg | 8460N | 1.20 |
| K57RF37-Y71M4 | 192 | 0.37KW | 7.20r/min | 435N.m | 46kg | 8720N | 1.40 |
| K57RF37-Y71M4 | 166 | 0.37KW | 8.30r/min | 375N.m | 46kg | 8980N | 1.60 |
| K57RF37-Y71M4 | 129 | 0.37KW | 11.0r/min | 295N.m | 46kg | 9290N | 2.00 |
| K57RF37-Y71M4 | 111 | 0.37KW | 12.0r/min | 250N.m | 46kg | 9460N | 2.40 |
| K57RF37-Y71M4 | 97 | 0.37KW | 14.0r/min | 220N.m | 46kg | 9560N | 2.70 |
K57RF37-Y0.25KWSpeeding machine type:
K57rf37-y0. 25kw base foot is fitted with tilt gears - umbrella gear reduction power
Ka57brf37-y0. 25kw bottom foot hollow axis fitted with tilt gear - umbrella gear reduction power
Kv57brf37-y0. 25kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh57bf37-y0. 25kw bottom foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf57rf37-y0. 25kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf57rf37-y0. 25 kwb5 installation of tilt gears - umbrella gear reduction power
Frf57rf37-y0. 25kwb5 installation of tilt gears - umbrella gear-reducing power
Khf57rf37-y0. 25kwb5 flac locks fitted with tilt gears - umbrella gear reduction power
Ka57rf37-y0. 25kw hollow axle tilt gears - an umbrella gear reduction power
Kv57rf37-y0. 25kw spaced axles with tilt gears - umbrella gear-reducing power
Kh57rf37-y0. 25kw hollow axle locks the slant gears - an umbrella gear-reducing motor
Installation of tilt gears on the kt57rf37-y0. 25kw hollow axle - umbrella gear reduction power
Kaz57rf37-y0. 25kwb14 aerocardial axle is equipped with tilt gear - an umbrella gear reduction power
Installation of an oscillating gear - an umbrella gear-reducing electric power plant on the flannel core axis kvz57rf37-y0. 25kwb14
Dhz57rf37-y0. 25kwb14 franium axle locks fitted with tilt gears - umbrella gear reduction power

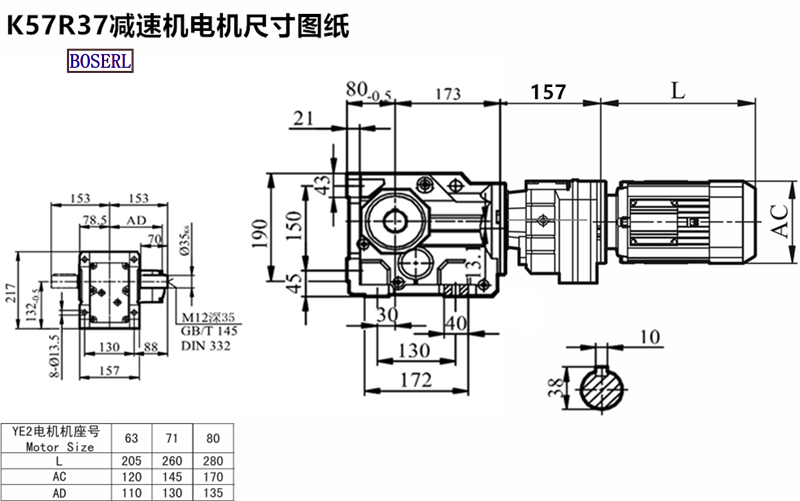

K57RF37-Y0.25KWInduction Motor 3Ph motors installed size drawings
K57RF37-Y0.25KWWe need to make an appointment three days in advanceMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
