K67DRE132M4Detailed Information

K67DRE132M4
prevnext

K67DRE132M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: output turn 334 laps/minutereducing motor _ k67dre132m4_k67dm132m4_ output turn 334 laps/minutereducing motor _ one minute turn 334 gear-reducing motor _ one minute turn 334 laps/minutereducing machine _ one minute turn 334 laps

K67DRE132M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
K67DRE132M430.897.5KW47rpm1530N.m110Kg15500N1
K67DRE132M429.277.5KW49rpm1450N.m110Kg16000N1.05
K67DRE132M425.627.5KW56rpm1260N.m110Kg17100N1.2
K67DRE132M423.087.5KW63rpm1140N.m110Kg17700N1.35
K67DRE132M420.257.5KW71rpm1000N.m110Kg18300N1.5
K67DRE132M417.877.5KW81rpm880N.m110Kg18500N1.65
K67DRE132M415.847.5KW91rpm780N.m110Kg18200N1.8
K67DRE132M413.527.5KW107rpm670N.m110Kg17700N2
K67DRE132M412.367.5KW117rpm610N.m110Kg17000N1.65
K67DRE132M410.847.5KW133rpm535N.m110Kg16600N1.85
K67DRE132M49.567.5KW151rpm470N.m110Kg16300N2
K67DRE132M48.487.5KW170rpm420N.m110Kg15900N2.1
K67DRE132M47.247.5KW200rpm355N.m110Kg15400N2.3

K67DM132M4Speed-down electrical parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
K67DM132M430.897.5KW47rpm1530N.m110Kg15500N1
K67DM132M429.277.5KW49rpm1450N.m110Kg16000N1.05
K67DM132M425.627.5KW56rpm1260N.m110Kg17100N1.2
K67DM132M423.087.5KW63rpm1140N.m110Kg17700N1.35
K67DM132M420.257.5KW71rpm1000N.m110Kg18300N1.5
K67DM132M417.877.5KW81rpm880N.m110Kg18500N1.65
K67DM132M415.847.5KW91rpm780N.m110Kg18200N1.8
K67DM132M413.527.5KW107rpm670N.m110Kg17700N2
K67DM132M412.367.5KW117rpm610N.m110Kg17000N1.65
K67DM132M410.847.5KW133rpm535N.m110Kg16600N1.85
K67DM132M49.567.5KW151rpm470N.m110Kg16300N2
K67DM132M48.487.5KW170rpm420N.m110Kg15900N2.1
K67DM132M47.247.5KW200rpm355N.m110Kg15400N2.3

K67DRE132M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

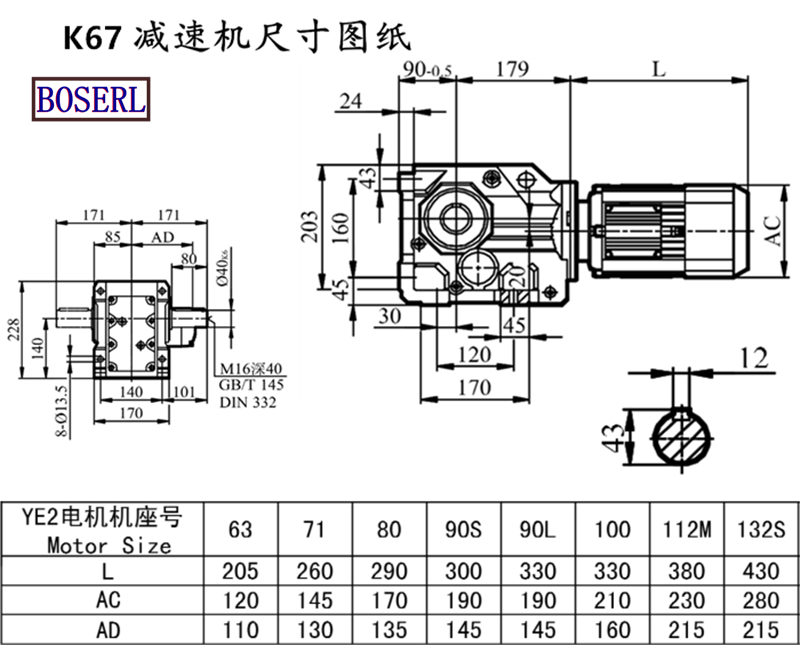

K67DRE132M4Induction Motor 3Ph motors installed size drawings


K67DRE132M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
