K77DV90M4

TEL：Email:[email protected]

详细信息

Keywords: k77dv90m4_k77dve90m4_1. 5kw power-reducing machine_1. 5kw brake-reducing machine model_1. 5kw brake-reducing machine size drawings_1. 5kw carrying a brake-reducing machine

K77DV90M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77DV90M4	135.28	1.5KW	10rpm	1380N.m	72Kg	16500N	1.1
K77DV90M4	128.52	1.5KW	11rpm	1310N.m	72Kg	16800N	1.2
K77DV90M4	113.56	1.5KW	12rpm	1160N.m	72Kg	17600N	1.35
K77DV90M4	97.05	1.5KW	15rpm	990N.m	72Kg	18300N	1.55
K77DV90M4	88.97	1.5KW	16rpm	910N.m	72Kg	18600N	1.7
K77DV90M4	78.07	1.5KW	18rpm	795N.m	72Kg	19000N	1.95
K77DV90M4	73.99	1.5KW	19rpm	755N.m	72Kg	19100N	2
K77DV90M4	64.75	1.5KW	22rpm	660N.m	72Kg	19400N	2.3
K77DV90M4	58.34	1.5KW	24rpm	595N.m	72Kg	19500N	2.6
K77DV90M4	51.18	1.5KW	27rpm	520N.m	72Kg	19700N	3
K77DV90M4	45.16	1.5KW	31rpm	460N.m	72Kg	19800N	3.4
K77DV90M4	40.04	1.5KW	35rpm	405N.m	72Kg	19800N	3.8

K77DVE90M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77DVE90M4	135.28	1.5KW	10rpm	1380N.m	72Kg	16500N	1.1
K77DVE90M4	128.52	1.5KW	11rpm	1310N.m	72Kg	16800N	1.2
K77DVE90M4	113.56	1.5KW	12rpm	1160N.m	72Kg	17600N	1.35
K77DVE90M4	97.05	1.5KW	15rpm	990N.m	72Kg	18300N	1.55
K77DVE90M4	88.97	1.5KW	16rpm	910N.m	72Kg	18600N	1.7
K77DVE90M4	78.07	1.5KW	18rpm	795N.m	72Kg	19000N	1.95
K77DVE90M4	73.99	1.5KW	19rpm	755N.m	72Kg	19100N	2
K77DVE90M4	64.75	1.5KW	22rpm	660N.m	72Kg	19400N	2.3
K77DVE90M4	58.34	1.5KW	24rpm	595N.m	72Kg	19500N	2.6
K77DVE90M4	51.18	1.5KW	27rpm	520N.m	72Kg	19700N	3
K77DVE90M4	45.16	1.5KW	31rpm	460N.m	72Kg	19800N	3.4
K77DVE90M4	40.04	1.5KW	35rpm	405N.m	72Kg	19800N	3.8

K77DV90M4Speeding machine type:

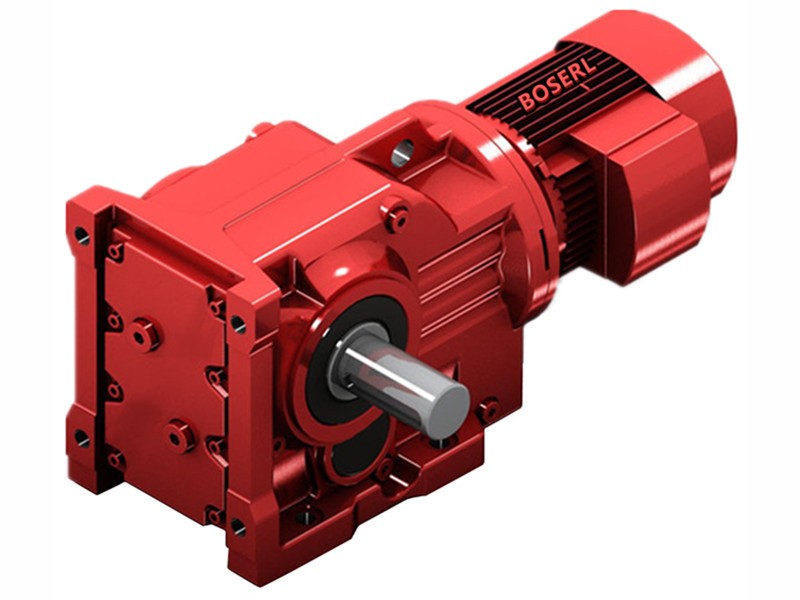

K. Dr. bottom foot slashing gears - umbrella gear reduction

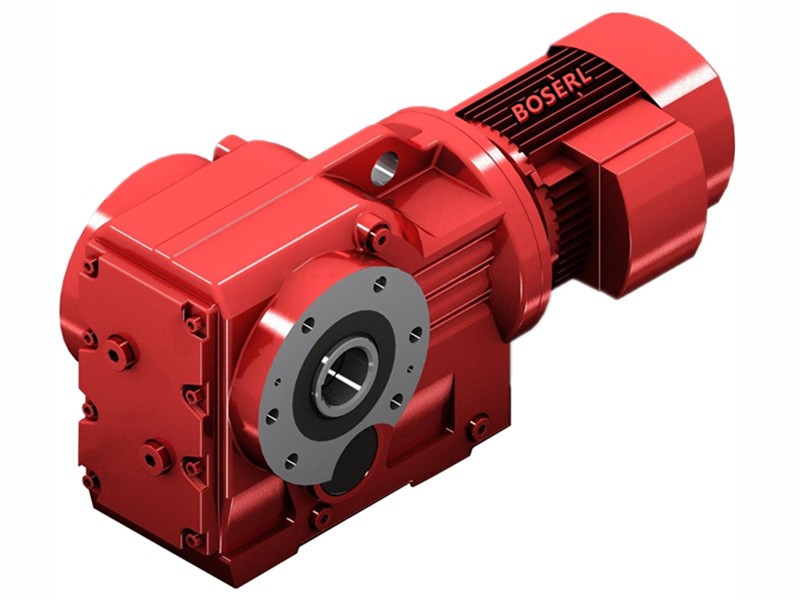

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

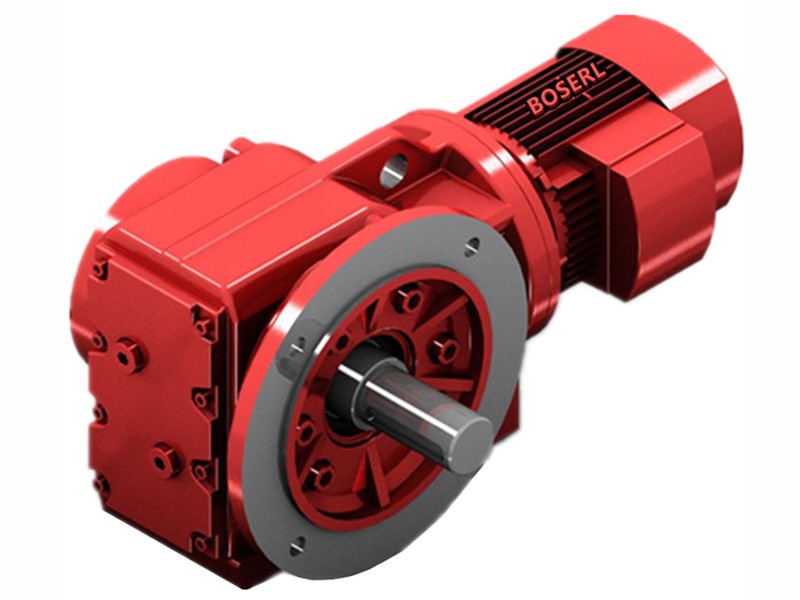

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

K77DV90M4Induction Motor 3Ph motors installed size drawings

K77DV90M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
