K77R37DT80M4Detailed Information
Keywords: how to fit 110 kw power with a double axle reduction box_k77r37dt80m4_k77r37dr71m4
K77R37DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K77R37DT80M4 | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| K77R37DT80M4 | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| K77R37DT80M4 | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| K77R37DT80M4 | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| K77R37DT80M4 | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
K77r37dr71m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K77R37DR71M4 | 815 | 0.37KW | 1.70r/min | 1880N.m | 76kg | 7450N | 0.80 |
| K77R37DR71M4 | 709 | 0.37KW | 2.00r/min | 1590N.m | 76kg | 15100N | 0.95 |
| K77R37DR71M4 | 622 | 0.37KW | 2.20r/min | 1390N.m | 76kg | 16400N | 1.10 |
| K77R37DR71M4 | 552 | 0.37KW | 2.50r/min | 1250N.m | 76kg | 17200N | 1.25 |
| K77R37DR71M4 | 485 | 0.37KW | 2.80r/min | 1090N.m | 76kg | 17900N | 1.40 |
| K77R37DR71M4 | 428 | 0.37KW | 3.20r/min | 960N.m | 76kg | 18400N | 1.60 |
| K77R37DR71M4 | 367 | 0.37KW | 3.80r/min | 840N.m | 76kg | 18900N | 1.85 |
| K77R37DR71M4 | 328 | 0.37KW | 4.20r/min | 745N.m | 76kg | 19100N | 2.10 |
| K77R37DR71M4 | 290 | 0.37KW | 4.80r/min | 665N.m | 76kg | 19400N | 2.30 |
| K77R37DR71M4 | 252 | 0.37KW | 5.50r/min | 570N.m | 76kg | 19600N | 2.70 |
| K77R37DR71M4 | 221 | 0.37KW | 6.20r/min | 500N.m | 76kg | 19700N | 3.10 |
| K77R37DR71M4 | 195 | 0.37KW | 7.10r/min | 440N.m | 76kg | 19800N | 3.50 |
| K77R37DR71M4 | 175 | 0.37KW | 7.90r/min | 390N.m | 76kg | 19900N | 4.00 |
| K77R37DR71M4 | 154 | 0.37KW | 9.00r/min | 345N.m | 76kg | 19900N | 4.50 |
K77R37DT80M4Speeding machine type:
K77r37dt80m4 bottom foot with tilt gear - umbrella gear deviation engine
Ka77br37dt80m4 foot hollow axle is equipped with tilt gears - umbrella gear reduction power
The kv77br37dt80m4 foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh77br37dt80m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37dt80m4b5 installation of tilt gear - umbrella gear-reducing power
Kaf77r37dt80m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37dt80m4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf77r37dt80m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka77r37dt80m4 hollow axle tilt gears - an umbrella gear reduction power
Kv77r37dt80m4 spaced axles with tilt gears - umbrella gear-reducing power
Kh77r37dt80m4 empty axle locks slashing gears - umbrella gear reduction power
The kt77r37dt80m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz77r37dt80m4b14 installation of tilt gear - umbrella gear reduction power
Kvz77r37dt80m4b14 installation of tilt gear - umbrella gear deviation power
Khz77r37dt80m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

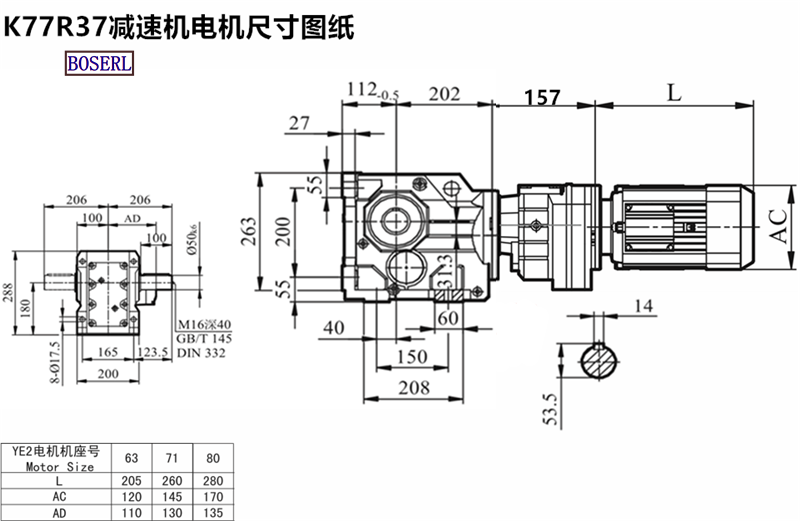

K77R37DT80M4Induction Motor 3Ph motors installed size drawings
K77r37dt80m4 deviation electric power plant, three days in advanceMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
