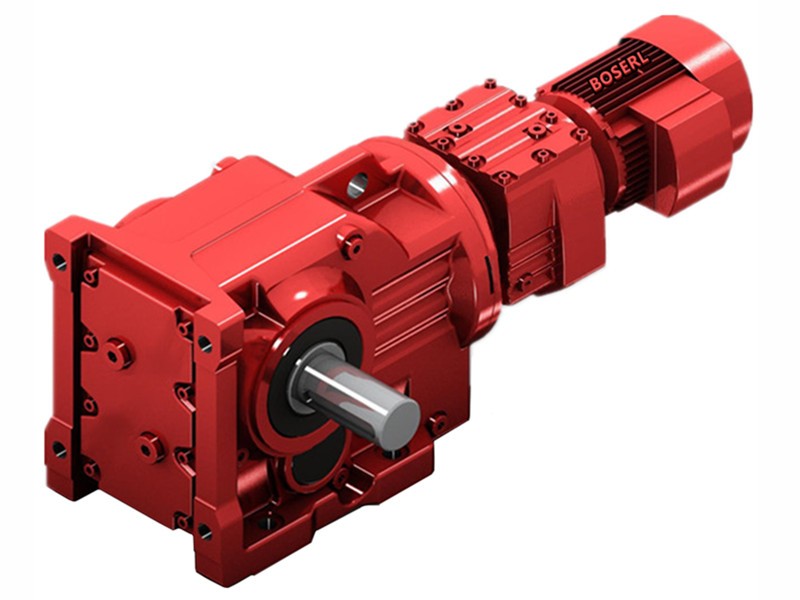

K77R37DV63L4

TEL：Email:[email protected]

详细信息

Keywords: how to fit the 22kw power with the gear brakes _k77r37dv63l4_k77r37drn80mk4

K77R37DV63L4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77R37DV63L4	1514	0.18KW	0.87r/min	1710N.m	71.5kg	14100N	0.90
K77R37DV63L4	1388	0.18KW	0.95r/min	1570N.m	71.5kg	15200N	1.00
K77R37DV63L4	1218	0.18KW	1.10r/min	1380N.m	71.5kg	16500N	1.10
K77R37DV63L4	1053	0.18KW	1.20r/min	1200N.m	71.5kg	17400N	1.30
K77R37DV63L4	924	0.18KW	1.40r/min	1050N.m	71.5kg	18100N	1.45
K77R37DV63L4	815	0.18KW	1.60r/min	930N.m	71.5kg	18600N	1.65
K77R37DV63L4	709	0.18KW	1.90r/min	760N.m	71.5kg	19100N	2.00
K77R37DV63L4	622	0.18KW	2.10r/min	665N.m	71.5kg	19300N	2.30
K77R37DV63L4	552	0.18KW	2.40r/min	600N.m	71.5kg	19500N	2.60
K77R37DV63L4	485	0.18KW	2.70r/min	525N.m	71.5kg	19600N	2.90
K77R37DV63L4	428	0.18KW	3.10r/min	465N.m	71.5kg	19800N	3.30
K77R37DV63L4	367	0.18KW	3.60r/min	410N.m	71.5kg	19800N	3.80

K77r37drn80mk4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77R37DRN80MK4	485	0.55KW	2.80r/min	1660N.m	80.5kg	14600N	0.95
K77R37DRN80MK4	428	0.55KW	3.20r/min	1460N.m	80.5kg	16000N	1.05
K77R37DRN80MK4	367	0.55KW	3.80r/min	1260N.m	80.5kg	17100N	1.20
K77R37DRN80MK4	328	0.55KW	4.20r/min	1120N.m	80.5kg	17800N	1.35
K77R37DRN80MK4	290	0.55KW	4.80r/min	1000N.m	80.5kg	18300N	1.55
K77R37DRN80MK4	252	0.55KW	5.50r/min	860N.m	80.5kg	18800N	1.80
K77R37DRN80MK4	221	0.55KW	6.20r/min	755N.m	80.5kg	19100N	2.00
K77R37DRN80MK4	195	0.55KW	7.10r/min	665N.m	80.5kg	19300N	2.30
K77R37DRN80MK4	175	0.55KW	7.90r/min	595N.m	80.5kg	19500N	2.60
K77R37DRN80MK4	154	0.55KW	9.00r/min	525N.m	80.5kg	19600N	3.00

K77R37DV63L4Speeding machine type:

K77r37dv63l4 bottom foot is fitted with tilt gears - umbrella gear reduction power

Ka77br37dv63l4 bottom foot hollow axis installed with tilt gear - umbrella gear-reducing power

The kv77br37dv63l4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor

Kh77br37dv63l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf77r37dv63l4b5 installation of tilt gear - umbrella gear-reducing power

Kaf77r37dv63l4b5farland aerocardial axis installed with tilt gears - umbrella gear-reducing power

Kvf77r37dv63l4b5franco-axis installation of tilt gear - umbrella gear deviation engine

Khf77r37dv63l4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power

Ka77r37dv63l4 hollow axle tilt gears - an umbrella gear deceleration power plant

The kv77r37dv63l4 spaced axle is equipped with tilt gears - an umbrella gear decelerator

Kh77r37dv63l4 empty axle locks slashing gears - umbrella gear reduction power

Kt77r37dv63l4 sky axis installation of tilt gear - umbrella gear deviation engine

Kaz77r37dv63l4b14 installation of tilt gear - umbrella gear reduction power

Kvz77r37dv63l4b14francocardoaxis installed with tilt gears - an umbrella gear-reducing power plant

Khz77r37dv63l4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

K77R37DV63L4Induction Motor 3Ph motors installed size drawings

K77r37dv63l4reducing power plantMotor-gear reducer

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
