The output round 250 laps/minute speed-reducing machine _k87drn100m4_boserl moving k87dv100m4 speed-reducing plant

K87DRN100M4Detailed Information

prevnext

K87DRN100M4

TEL：Email:[email protected]

详细信息

Keyword: output turn 250 laps/minutereducing motor _ k87drn 100m4_k87dv100m4_ output turn 250 laps/minutereducing motor _ 250 laps/minutereducing motor _ minute turn 250 laps

K87DRN100M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K87DRN100M4	147.32	3KW	9.5rpm	3010N.m	115Kg	26900N	0.9
K87DRN100M4	126.91	3KW	11rpm	2590N.m	115Kg	27400N	1.05
K87DRN100M4	115.82	3KW	12rpm	2360N.m	115Kg	27700N	1.15
K87DRN100M4	102.71	3KW	14rpm	2100N.m	115Kg	28000N	1.3
K87DRN100M4	86.34	3KW	16rpm	1760N.m	115Kg	28300N	1.55
K87DRN100M4	79.34	3KW	18rpm	1620N.m	115Kg	28400N	1.65
K87DRN100M4	70.46	3KW	20rpm	1440N.m	115Kg	28500N	1.85
K87DRN100M4	63	3KW	22rpm	1280N.m	115Kg	28600N	2.1
K87DRN100M4	56.64	3KW	25rpm	1150N.m	115Kg	28700N	2.3
K87DRN100M4	49.16	3KW	28rpm	1000N.m	115Kg	28800N	2.7
K87DRN100M4	44.02	3KW	32rpm	900N.m	115Kg	28800N	2.9
K87DRN100M4	36.52	3KW	38rpm	745N.m	115Kg	28400N	3.4

K87DV100M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K87DV100M4	147.32	3KW	9.5rpm	3010N.m	115Kg	26900N	0.9
K87DV100M4	126.91	3KW	11rpm	2590N.m	115Kg	27400N	1.05
K87DV100M4	115.82	3KW	12rpm	2360N.m	115Kg	27700N	1.15
K87DV100M4	102.71	3KW	14rpm	2100N.m	115Kg	28000N	1.3
K87DV100M4	86.34	3KW	16rpm	1760N.m	115Kg	28300N	1.55
K87DV100M4	79.34	3KW	18rpm	1620N.m	115Kg	28400N	1.65
K87DV100M4	70.46	3KW	20rpm	1440N.m	115Kg	28500N	1.85
K87DV100M4	63	3KW	22rpm	1280N.m	115Kg	28600N	2.1
K87DV100M4	56.64	3KW	25rpm	1150N.m	115Kg	28700N	2.3
K87DV100M4	49.16	3KW	28rpm	1000N.m	115Kg	28800N	2.7
K87DV100M4	44.02	3KW	32rpm	900N.m	115Kg	28800N	2.9
K87DV100M4	36.52	3KW	38rpm	745N.m	115Kg	28400N	3.4

K87DRN100M4Speeding machine type:

K. Dr.bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr.bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr.bottom

Kh. B dr.the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr.empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr.empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr.hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

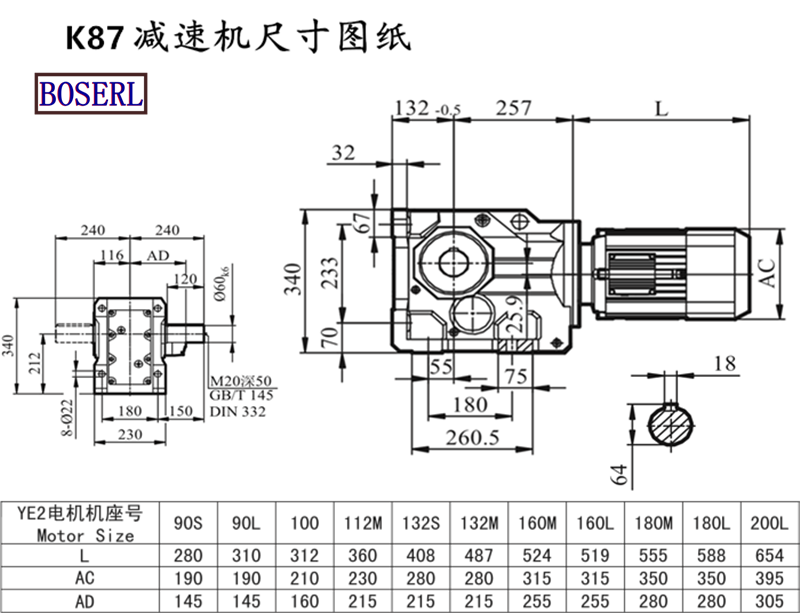

K87DRN100M4Induction Motor 3Ph motors installed size drawings:

K87DRN100M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
